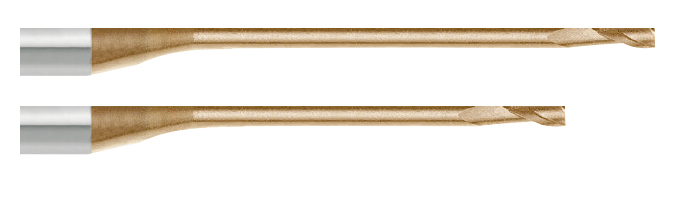

Твёрдосплавная концевая микрофреза с угловым радиусом, глубина обработки до 15хD, диаметр хвостовика 4мм
Варианты артикула

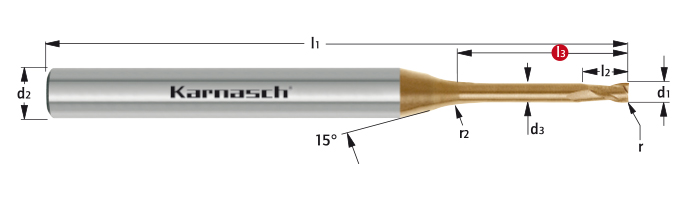

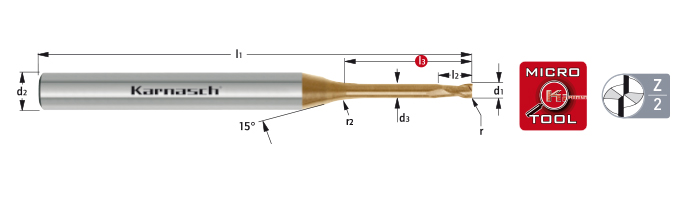

| Артикул | d1 | d2 | d3 | l1 | l2 | l3 | r | r2 | Z | Объём | Цена, ₽ | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30.6256.0010.002.002 | 0.1 | 4 | 0.1 | 45 | 0.1 | 0.2 | 4 | 1 | 2 | h5 |
10 608
|
|
| 30.6256.0010.002.003 | 0.1 | 4 | 0.1 | 45 | 0.1 | 0.3 | 4 | 1 | 2 | h5 |
10 608
|
|
| 30.6256.0010.002.004 | 0.1 | 4 | 0.1 | 45 | 0.1 | 0.4 | 4 | 1 | 2 | h5 |
10 608
|
|
| 30.6256.0020.005.005 | 0.2 | 4 | 0.2 | 50 | 0.15 | 0.5 | 4 | 1 | 2 | h5 |
9 246
|
|
| 30.6256.0020.005.010 | 0.2 | 4 | 0.2 | 50 | 0.15 | 1 | 4 | 1 | 2 | h5 |
9 246
|
|
| 30.6256.0020.005.015 | 0.2 | 4 | 0.2 | 50 | 0.15 | 1.5 | 4 | 1 | 2 | h5 |
9 246
|
|
| 30.6256.0020.005.020 | 0.2 | 4 | 0.2 | 50 | 0.15 | 2 | 4 | 1 | 2 | h5 |
9 246
|
|
| 30.6256.0030.005.010 | 0.3 | 4 | 0.3 | 50 | 0.25 | 1 | 4 | 2 | 2 | h5 |
8 520
|
|
| 30.6256.0030.005.015 | 0.3 | 4 | 0.3 | 50 | 0.25 | 1.5 | 4 | 2 | 2 | h5 |
8 520
|
|
| 30.6256.0030.005.020 | 0.3 | 4 | 0.3 | 50 | 0.25 | 2 | 4 | 2 | 2 | h5 |
8 520
|
|
| 30.6256.0030.005.025 | 0.3 | 4 | 0.3 | 50 | 0.25 | 2.5 | 4 | 2 | 2 | h5 |
8 520
|
|
| 30.6256.0030.005.030 | 0.3 | 4 | 0.3 | 50 | 0.25 | 3 | 4 | 2 | 2 | h5 |
8 520
|
|
| 30.6256.0040.010.010 | 0.4 | 4 | 0.4 | 50 | 0.3 | 1 | 4 | 2 | 2 | h5 |
7 632
|
|
| 30.6256.0040.010.015 | 0.4 | 4 | 0.4 | 50 | 0.3 | 1.5 | 4 | 2 | 2 | h5 |
7 632
|
|
| 30.6256.0040.010.020 | 0.4 | 4 | 0.4 | 50 | 0.3 | 2 | 4 | 2 | 2 | h5 |
7 632
|
|
| 30.6256.0040.010.030 | 0.4 | 4 | 0.4 | 50 | 0.3 | 3 | 4 | 2 | 2 | h5 |
7 632
|
|
| 30.6256.0040.010.040 | 0.4 | 4 | 0.4 | 50 | 0.3 | 4 | 4 | 2 | 2 | h5 |
7 632
|
|
| 30.6256.0050.010.010 | 0.5 | 4 | 0.5 | 50 | 0.35 | 1 | 4 | 2 | 2 | h5 |
7 647
|
|
| 30.6256.0050.010.020 | 0.5 | 4 | 0.5 | 50 | 0.35 | 2 | 4 | 2 | 2 | h5 |
7 647
|
|
| 30.6256.0050.010.030 | 0.5 | 4 | 0.5 | 50 | 0.35 | 3 | 4 | 2 | 2 | h5 |
7 647
|
|
| 30.6256.0050.010.040 | 0.5 | 4 | 0.5 | 50 | 0.35 | 4 | 4 | 2 | 2 | h5 |
7 647
|
|
| 30.6256.0050.010.050 | 0.5 | 4 | 0.5 | 50 | 0.35 | 5 | 4 | 2 | 2 | h5 |
7 647
|
|
| 30.6256.0050.010.060 | 0.5 | 4 | 0.5 | 50 | 0.35 | 6 | 4 | 2 | 2 | h5 |
7 647
|
|
| 30.6256.0060.010.020 | 0.6 | 4 | 0.6 | 50 | 0.4 | 2 | 4 | 4 | 2 | h5 |
7 455
|
|
| 30.6256.0060.010.030 | 0.6 | 4 | 0.6 | 50 | 0.4 | 3 | 4 | 4 | 2 | h5 |
7 455
|
|
| 30.6256.0060.010.040 | 0.6 | 4 | 0.6 | 50 | 0.4 | 4 | 4 | 4 | 2 | h5 |
7 455
|
|
| 30.6256.0060.010.050 | 0.6 | 4 | 0.6 | 50 | 0.4 | 5 | 4 | 4 | 2 | h5 |
7 455
|
|
| 30.6256.0060.010.060 | 0.6 | 4 | 0.6 | 50 | 0.4 | 6 | 4 | 4 | 2 | h5 |
7 455
|
|
| 30.6256.0060.010.080 | 0.6 | 4 | 0.6 | 50 | 0.4 | 8 | 4 | 4 | 2 | h5 |
7 455
|
|
| 30.6256.0080.020.020 | 0.8 | 4 | 0.8 | 50 | 0.5 | 2 | 4 | 4 | 2 | h5 |
7 455
|
|
| 30.6256.0080.020.040 | 0.8 | 4 | 0.8 | 50 | 0.5 | 4 | 4 | 4 | 2 | h5 |
7 455
|
|
| 30.6256.0080.020.050 | 0.8 | 4 | 0.8 | 50 | 0.5 | 5 | 4 | 4 | 2 | h5 |
7 455
|
|
| 30.6256.0080.020.060 | 0.8 | 4 | 0.8 | 50 | 0.5 | 6 | 4 | 4 | 2 | h5 |
7 455
|
|
| 30.6256.0080.020.080 | 0.8 | 4 | 0.8 | 50 | 0.5 | 8 | 4 | 4 | 2 | h5 |
7 455
|
|
| 30.6256.0080.020.100 | 0.8 | 4 | 0.8 | 50 | 0.5 | 10 | 4 | 4 | 2 | h5 |
7 455
|
|
| 30.6256.0100.020.020 | 1 | 4 | 1 | 50 | 0.8 | 2 | 4 | 4 | 2 | h5 |
7 455
|
|
| 30.6256.0100.020.030 | 1 | 4 | 1 | 50 | 0.8 | 3 | 4 | 4 | 2 | h5 |
7 455
|
|
| 30.6256.0100.020.040 | 1 | 4 | 1 | 50 | 0.8 | 4 | 4 | 4 | 2 | h5 |
7 455
|
|
| 30.6256.0100.020.050 | 1 | 4 | 1 | 50 | 0.8 | 5 | 4 | 4 | 2 | h5 |
7 455
|
|
| 30.6256.0100.020.060 | 1 | 4 | 1 | 50 | 0.8 | 6 | 4 | 4 | 2 | h5 |
7 455
|
|
| 30.6256.0100.020.070 | 1 | 4 | 1 | 50 | 0.8 | 7 | 4 | 4 | 2 | h5 |
7 455
|
|
| 30.6256.0100.020.080 | 1 | 4 | 1 | 50 | 0.8 | 8 | 4 | 4 | 2 | h5 |
7 455
|
|
| 30.6256.0100.020.090 | 1 | 4 | 1 | 50 | 0.8 | 9 | 4 | 4 | 2 | h5 |
7 455
|
|
| 30.6256.0100.020.100 | 1 | 4 | 1 | 50 | 0.8 | 10 | 4 | 4 | 2 | h5 |
7 455
|
|
| 30.6256.0100.020.120 | 1 | 4 | 1 | 55 | 0.8 | 12 | 4 | 4 | 2 | h5 |
7 632
|
|
| 30.6256.0100.020.150 | 1 | 4 | 1 | 55 | 0.8 | 15 | 4 | 4 | 2 | h5 |
7 632
|
|
| 30.6256.0120.020.060 | 1.2 | 4 | 1.2 | 50 | 1 | 6 | 4 | 4 | 2 | h5 |
7 403
|
|
| 30.6256.0120.020.120 | 1.2 | 4 | 1.2 | 55 | 1 | 12 | 4 | 4 | 2 | h5 |
7 403
|
|
| 30.6256.0150.020.040 | 1.5 | 4 | 1.5 | 50 | 1.35 | 4 | 4 | 4 | 2 | h5 |
7 403
|
|
| 30.6256.0150.020.060 | 1.5 | 4 | 1.5 | 50 | 1.35 | 6 | 4 | 4 | 2 | h5 |
7 403
|
|
| 30.6256.0150.020.080 | 1.5 | 4 | 1.5 | 50 | 1.35 | 8 | 4 | 4 | 2 | h5 |
7 403
|
|
| 30.6256.0150.020.100 | 1.5 | 4 | 1.5 | 50 | 1.35 | 10 | 4 | 4 | 2 | h5 |
7 403
|
|
| 30.6256.0150.020.120 | 1.5 | 4 | 1.5 | 55 | 1.35 | 12 | 4 | 4 | 2 | h5 |
7 403
|
|
| 30.6256.0150.020.140 | 1.5 | 4 | 1.5 | 55 | 1.35 | 14 | 4 | 4 | 2 | h5 |
7 403
|
|
| 30.6256.0150.020.160 | 1.5 | 4 | 1.5 | 55 | 1.35 | 16 | 4 | 4 | 2 | h5 |
7 403
|
|
| 30.6256.0150.020.180 | 1.5 | 4 | 1.5 | 60 | 1.35 | 18 | 4 | 4 | 2 | h5 |
7 581
|
|
| 30.6256.0150.020.200 | 1.5 | 4 | 1.5 | 60 | 1.35 | 20 | 4 | 4 | 2 | h5 |
7 581
|
|
| 30.6256.0200.020.040 | 2 | 4 | 2 | 50 | 1.7 | 4 | 4 | 4 | 2 | h5 |
7 403
|
|
| 30.6256.0200.020.060 | 2 | 4 | 2 | 50 | 1.7 | 6 | 4 | 4 | 2 | h5 |
7 403
|
|
| 30.6256.0200.020.080 | 2 | 4 | 2 | 50 | 1.7 | 8 | 4 | 4 | 2 | h5 |
7 403
|
|
| 30.6256.0200.020.100 | 2 | 4 | 2 | 50 | 1.7 | 10 | 4 | 4 | 2 | h5 |
7 403
|
|
| 30.6256.0200.020.120 | 2 | 4 | 2 | 55 | 1.7 | 12 | 4 | 4 | 2 | h5 |
7 403
|
|
| 30.6256.0200.020.150 | 2 | 4 | 2 | 55 | 1.7 | 15 | 4 | 4 | 2 | h5 |
7 403
|
|
| 30.6256.0200.020.200 | 2 | 4 | 2 | 60 | 1.7 | 20 | 4 | 4 | 2 | h5 |
7 581
|
|
| 30.6256.0200.050.040 | 2 | 4 | 2 | 50 | 1.7 | 4 | 4 | 4 | 2 | h5 |
7 403
|
|
| 30.6256.0200.050.060 | 2 | 4 | 2 | 50 | 1.7 | 6 | 4 | 4 | 2 | h5 |
7 403
|
|
| 30.6256.0200.050.080 | 2 | 4 | 2 | 50 | 1.7 | 8 | 4 | 4 | 2 | h5 |
7 403
|
|
| 30.6256.0200.050.100 | 2 | 4 | 2 | 50 | 1.7 | 10 | 4 | 4 | 2 | h5 |
7 403
|
|
| 30.6256.0200.050.120 | 2 | 4 | 2 | 55 | 1.7 | 12 | 4 | 4 | 2 | h5 |
7 403
|
|
| 30.6256.0200.050.150 | 2 | 4 | 2 | 55 | 1.7 | 15 | 4 | 4 | 2 | h5 |
7 403
|
|
| 30.6256.0200.050.200 | 2 | 4 | 2 | 60 | 1.7 | 20 | 4 | 4 | 2 | h5 |
7 581
|
|
