Твёрдосплавное сверло для высокопроизводительного сверления глубоких отверстий до 30хD с внутренним подводом СОЖ
Варианты артикула

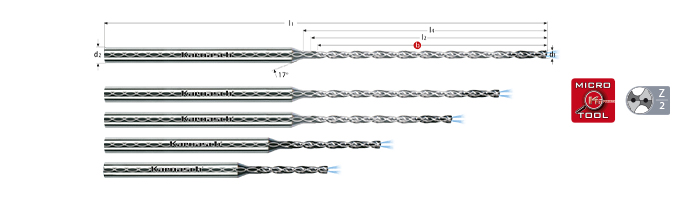

| Артикул | d1 | d2 | l1 | l2 | l3 | l4 | Z | Цена, ₽ | |
|---|---|---|---|---|---|---|---|---|---|
| 22.0322.0080.050 | 0.8 | 3 | 50 | 6 | 5 | 7 | 2 |
20 082
|
|
| 22.0322.0080.105 | 0.8 | 3 | 50 | 11 | 10.5 | 12 | 2 |
21 792
|
|
| 22.0322.0085.055 | 0.85 | 3 | 50 | 7 | 5.5 | 8 | 2 |
20 082
|
|
| 22.0322.0085.105 | 0.85 | 3 | 50 | 12 | 10.5 | 13 | 2 |
21 792
|
|
| 22.0322.0090.055 | 0.9 | 3 | 50 | 7 | 5.5 | 8 | 2 |
20 082
|
|
| 22.0322.0090.115 | 0.9 | 3 | 50 | 13 | 11.5 | 14 | 2 |
21 792
|
|
| 22.0322.0095.060 | 0.95 | 3 | 50 | 7 | 6 | 8 | 2 |
20 082
|
|
| 22.0322.0095.115 | 0.95 | 3 | 50 | 13 | 11.5 | 14 | 2 |
21 792
|
|
| 22.0322.0100.060 | 1 | 3 | 60 | 7 | 6 | 8 | 2 |
17 896
|
|
| 22.0322.0100.120 | 1 | 3 | 65 | 13 | 12 | 14 | 2 |
20 856
|
|
| 22.0322.0100.180 | 1 | 3 | 65 | 20 | 18 | 21 | 2 |
22 943
|
|
| 22.0322.0105.070 | 1.05 | 3 | 60 | 8 | 7 | 10 | 2 |
17 896
|
|
| 22.0322.0105.130 | 1.05 | 3 | 65 | 14 | 13 | 16 | 2 |
20 856
|
|
| 22.0322.0105.190 | 1.05 | 3 | 65 | 21 | 19 | 22 | 2 |
22 943
|
|
| 22.0322.0110.070 | 1.1 | 3 | 60 | 9 | 7 | 10 | 2 |
17 896
|
|
| 22.0322.0110.140 | 1.1 | 3 | 65 | 16 | 14 | 17 | 2 |
20 856
|
|
| 22.0322.0110.200 | 1.1 | 3 | 65 | 22 | 20 | 23 | 2 |
22 943
|
|
| 22.0322.0115.070 | 1.15 | 3 | 60 | 9 | 7 | 10 | 2 |
17 896
|
|
| 22.0322.0115.140 | 1.15 | 3 | 65 | 16 | 14 | 17 | 2 |
20 856
|
|
| 22.0322.0115.210 | 1.15 | 3 | 65 | 23 | 21 | 24 | 2 |
22 943
|
|
| 22.0322.0120.080 | 1.2 | 3 | 60 | 10 | 8 | 11 | 2 |
17 896
|
|
| 22.0322.0120.150 | 1.2 | 3 | 65 | 17 | 15 | 18 | 2 |
20 856
|
|
| 22.0322.0120.220 | 1.2 | 3 | 65 | 24 | 22 | 25 | 2 |
22 943
|
|
| 22.0322.0125.080 | 1.25 | 3 | 60 | 10 | 8 | 11 | 2 |
17 896
|
|
| 22.0322.0125.150 | 1.25 | 3 | 65 | 17 | 15 | 18 | 2 |
20 856
|
|
| 22.0322.0125.230 | 1.25 | 3 | 65 | 25 | 23 | 26 | 2 |
22 943
|
|
| 22.0322.0130.080 | 1.3 | 3 | 60 | 10 | 8 | 11 | 2 |
17 896
|
|
| 22.0322.0130.160 | 1.3 | 3 | 65 | 18 | 16 | 19 | 2 |
20 856
|
|
| 22.0322.0130.240 | 1.3 | 3 | 65 | 26 | 24 | 27 | 2 |
22 943
|
|
| 22.0322.0135.090 | 1.35 | 3 | 60 | 11 | 9 | 12 | 2 |
17 896
|
|
| 22.0322.0135.170 | 1.35 | 3 | 65 | 19 | 17 | 20 | 2 |
20 856
|
|
| 22.0322.0135.250 | 1.35 | 3 | 65 | 27 | 25 | 28 | 2 |
22 943
|
|
| 22.0322.0140.090 | 1.4 | 3 | 60 | 11 | 9 | 12 | 2 |
17 896
|
|
| 22.0322.0140.170 | 1.4 | 3 | 65 | 19 | 17 | 20 | 2 |
20 856
|
|
| 22.0322.0140.260 | 1.4 | 3 | 65 | 28 | 26 | 29 | 2 |
22 943
|
|
| 22.0322.0145.090 | 1.45 | 3 | 60 | 12 | 9 | 13 | 2 |
17 896
|
|
| 22.0322.0145.180 | 1.45 | 3 | 65 | 20 | 18 | 21 | 2 |
20 856
|
|
| 22.0322.0145.270 | 1.45 | 3 | 65 | 30 | 27 | 31 | 2 |
22 943
|
|
| 22.0322.0150.090 | 1.5 | 3 | 60 | 11 | 9 | 12 | 2 |
17 896
|
|
| 22.0322.0150.180 | 1.5 | 3 | 65 | 20 | 18 | 21 | 2 |
20 856
|
|
| 22.0322.0150.270 | 1.5 | 3 | 65 | 30 | 27 | 31 | 2 |
22 943
|
|
| 22.0322.0155.100 | 1.55 | 3 | 60 | 12 | 10 | 13 | 2 |
17 896
|
|
| 22.0322.0155.190 | 1.55 | 3 | 65 | 21 | 19 | 22 | 2 |
20 856
|
|
| 22.0322.0155.280 | 1.55 | 3 | 65 | 31 | 28 | 32 | 2 |
22 943
|
|
| 22.0322.0160.100 | 1.6 | 3 | 60 | 13 | 10 | 14 | 2 |
17 896
|
|
| 22.0322.0160.200 | 1.6 | 3 | 65 | 22 | 20 | 23 | 2 |
20 856
|
|
| 22.0322.0160.300 | 1.6 | 3 | 65 | 32 | 30 | 33 | 2 |
22 943
|
|
| 22.0322.0165.100 | 1.65 | 3 | 60 | 13 | 10 | 14 | 2 |
17 896
|
|
| 22.0322.0165.200 | 1.65 | 3 | 65 | 22 | 20 | 23 | 2 |
20 856
|
|
| 22.0322.0165.300 | 1.65 | 3 | 65 | 32 | 30 | 33 | 2 |
22 943
|
|
| 22.0322.0170.110 | 1.7 | 3 | 60 | 14 | 11 | 15 | 2 |
17 896
|
|
| 22.0322.0170.210 | 1.7 | 3 | 65 | 23 | 21 | 24 | 2 |
20 856
|
|
| 22.0322.0170.310 | 1.7 | 3 | 70 | 34 | 31 | 35 | 2 |
22 943
|
|
| 22.0322.0175.110 | 1.75 | 3 | 60 | 14 | 11 | 15 | 2 |
17 896
|
|
| 22.0322.0175.210 | 1.75 | 3 | 65 | 23 | 21 | 24 | 2 |
20 856
|
|
| 22.0322.0175.320 | 1.75 | 3 | 70 | 35 | 32 | 36 | 2 |
22 943
|
|
| 22.0322.0180.110 | 1.8 | 3 | 60 | 14 | 11 | 15 | 2 |
17 896
|
|
| 22.0322.0180.220 | 1.8 | 3 | 70 | 25 | 22 | 26 | 2 |
20 856
|
|
| 22.0322.0180.330 | 1.8 | 3 | 70 | 36 | 33 | 37 | 2 |
22 943
|
|
| 22.0322.0185.120 | 1.85 | 3 | 60 | 15 | 12 | 16 | 2 |
17 896
|
|
| 22.0322.0185.230 | 1.85 | 3 | 70 | 26 | 23 | 27 | 2 |
20 856
|
|
| 22.0322.0185.340 | 1.85 | 3 | 70 | 37 | 34 | 38 | 2 |
22 943
|
|
| 22.0322.0190.120 | 1.9 | 3 | 60 | 15 | 12 | 16 | 2 |
17 896
|
|
| 22.0322.0190.230 | 1.9 | 3 | 70 | 26 | 23 | 27 | 2 |
20 856
|
|
| 22.0322.0190.350 | 1.9 | 3 | 70 | 37 | 35 | 38 | 2 |
22 943
|
|
| 22.0322.0195.120 | 1.95 | 3 | 60 | 15 | 12 | 16 | 2 |
17 896
|
|
| 22.0322.0195.240 | 1.95 | 3 | 70 | 27 | 24 | 28 | 2 |
20 856
|
|
| 22.0322.0195.360 | 1.95 | 3 | 70 | 39 | 36 | 40 | 2 |
22 943
|
|
| 22.0322.0200.120 | 2 | 3 | 60 | 15 | 12 | 16 | 2 |
17 896
|
|
| 22.0322.0200.240 | 2 | 3 | 70 | 26 | 24 | 27 | 2 |
20 856
|
|
| 22.0322.0200.360 | 2 | 3 | 70 | 37 | 36 | 38 | 2 |
22 943
|
|
| 22.0322.0200.520 | 2 | 3 | 95 | 55 | 52 | 56 | 2 |
Снят с производства
|
|
| 22.0322.0200.620 | 2 | 3 | 102 | 65 | 62 | 66 | 2 |
Снят с производства
|
|
| 22.0322.0205.130 | 2.05 | 3 | 60 | 16 | 13 | 17 | 2 |
17 896
|
|
| 22.0322.0205.250 | 2.05 | 3 | 70 | 28 | 25 | 29 | 2 |
20 856
|
|
| 22.0322.0205.370 | 2.05 | 3 | 70 | 40 | 37 | 41 | 2 |
22 943
|
|
| 22.0322.0205.520 | 2.05 | 3 | 100 | 55 | 52 | 56 | 2 |
Снят с производства
|
|
| 22.0322.0205.630 | 2.05 | 3 | 118 | 66 | 63 | 67 | 2 |
Снят с производства
|
|
| 22.0322.0210.130 | 2.1 | 3 | 60 | 16 | 13 | 17 | 2 |
17 896
|
|
| 22.0322.0210.260 | 2.1 | 3 | 70 | 29 | 26 | 30 | 2 |
20 856
|
|
| 22.0322.0210.380 | 2.1 | 3 | 70 | 42 | 38 | 43 | 2 |
22 943
|
|
| 22.0322.0210.530 | 2.1 | 3 | 100 | 56 | 53 | 57 | 2 |
Снят с производства
|
|
| 22.0322.0210.650 | 2.1 | 3 | 118 | 68 | 65 | 69 | 2 |
Снят с производства
|
|
| 22.0322.0215.130 | 2.15 | 3 | 60 | 16 | 13 | 17 | 2 |
17 896
|
|
| 22.0322.0215.260 | 2.15 | 3 | 70 | 29 | 26 | 30 | 2 |
20 856
|
|
| 22.0322.0215.390 | 2.15 | 3 | 70 | 43 | 39 | 44 | 2 |
22 943
|
|
| 22.0322.0215.530 | 2.15 | 3 | 100 | 56 | 53 | 57 | 2 |
Снят с производства
|
|
| 22.0322.0215.660 | 2.15 | 3 | 118 | 69 | 66 | 70 | 2 |
Снят с производства
|
|
| 22.0322.0220.140 | 2.2 | 3 | 60 | 18 | 14 | 19 | 2 |
17 896
|
|
| 22.0322.0220.270 | 2.2 | 3 | 70 | 30 | 27 | 31 | 2 |
20 856
|
|
| 22.0322.0220.400 | 2.2 | 3 | 75 | 44 | 40 | 45 | 2 |
22 943
|
|
| 22.0322.0220.550 | 2.2 | 3 | 105 | 58 | 55 | 59 | 2 |
Снят с производства
|
|
| 22.0322.0220.680 | 2.2 | 3 | 118 | 71 | 68 | 72 | 2 |
Снят с производства
|
|
| 22.0322.0225.140 | 2.25 | 3 | 60 | 18 | 14 | 19 | 2 |
17 896
|
|
| 22.0322.0225.270 | 2.25 | 3 | 70 | 30 | 27 | 31 | 2 |
20 856
|
|
| 22.0322.0225.410 | 2.25 | 3 | 75 | 44 | 41 | 45 | 2 |
22 943
|
|
| 22.0322.0225.570 | 2.25 | 3 | 105 | 60 | 57 | 61 | 2 |
Снят с производства
|
|
| 22.0322.0225.690 | 2.25 | 3 | 118 | 72 | 69 | 73 | 2 |
Снят с производства
|
|
| 22.0322.0230.140 | 2.3 | 3 | 60 | 18 | 14 | 19 | 2 |
17 896
|
|
| 22.0322.0230.280 | 2.3 | 3 | 70 | 31 | 28 | 32 | 2 |
20 856
|
|
| 22.0322.0230.420 | 2.3 | 3 | 82 | 45 | 42 | 46 | 2 |
22 943
|
|
| 22.0322.0230.570 | 2.3 | 3 | 105 | 60 | 57 | 61 | 2 |
Снят с производства
|
|
| 22.0322.0230.710 | 2.3 | 3 | 118 | 74 | 71 | 75 | 2 |
Снят с производства
|
|
| 22.0322.0235.150 | 2.35 | 3 | 60 | 19 | 15 | 20 | 2 |
17 896
|
|
| 22.0322.0235.290 | 2.35 | 3 | 70 | 32 | 29 | 33 | 2 |
20 856
|
|
| 22.0322.0235.430 | 2.35 | 3 | 82 | 46 | 43 | 48 | 2 |
22 943
|
|
| 22.0322.0235.590 | 2.35 | 3 | 105 | 62 | 59 | 63 | 2 |
Снят с производства
|
|
| 22.0322.0235.730 | 2.35 | 3 | 120 | 76 | 73 | 77 | 2 |
Снят с производства
|
|
| 22.0322.0240.150 | 2.4 | 3 | 60 | 19 | 15 | 20 | 2 |
17 896
|
|
| 22.0322.0240.290 | 2.4 | 3 | 70 | 32 | 29 | 33 | 2 |
20 856
|
|
| 22.0322.0240.440 | 2.4 | 3 | 82 | 47 | 44 | 48 | 2 |
22 943
|
|
| 22.0322.0240.600 | 2.4 | 3 | 105 | 63 | 60 | 64 | 2 |
Снят с производства
|
|
| 22.0322.0240.750 | 2.4 | 3 | 120 | 78 | 75 | 79 | 2 |
Снят с производства
|
|
| 22.0322.0245.150 | 2.45 | 3 | 60 | 19 | 15 | 20 | 2 |
17 896
|
|
| 22.0322.0245.300 | 2.45 | 3 | 70 | 33 | 30 | 34 | 2 |
20 856
|
|
| 22.0322.0245.450 | 2.45 | 3 | 82 | 49 | 45 | 50 | 2 |
22 943
|
|
| 22.0322.0245.620 | 2.45 | 3 | 105 | 65 | 62 | 66 | 2 |
Снят с производства
|
|
| 22.0322.0245.760 | 2.45 | 3 | 120 | 79 | 76 | 80 | 2 |
Снят с производства
|
|
| 22.0322.0250.150 | 2.5 | 3 | 60 | 19 | 15 | 20 | 2 |
17 896
|
|
| 22.0322.0250.300 | 2.5 | 3 | 70 | 33 | 30 | 34 | 2 |
20 856
|
|
| 22.0322.0250.450 | 2.5 | 3 | 82 | 49 | 45 | 50 | 2 |
22 943
|
|
| 22.0322.0250.620 | 2.5 | 3 | 105 | 65 | 62 | 66 | 2 |
Снят с производства
|
|
| 22.0322.0250.770 | 2.5 | 3 | 120 | 80 | 77 | 81 | 2 |
Снят с производства
|
|
| 22.0322.0255.160 | 2.55 | 3 | 60 | 20 | 16 | 21 | 2 |
17 896
|
|
| 22.0322.0255.310 | 2.55 | 3 | 75 | 35 | 31 | 36 | 2 |
20 856
|
|
| 22.0322.0255.460 | 2.55 | 3 | 82 | 50 | 46 | 53 | 2 |
22 943
|
|
| 22.0322.0255.670 | 2.55 | 3 | 120 | 70 | 67 | 71 | 2 |
Снят с производства
|
|
| 22.0322.0255.790 | 2.55 | 3 | 130 | 82 | 79 | 83 | 2 |
Снят с производства
|
|
| 22.0322.0260.160 | 2.6 | 3 | 60 | 20 | 16 | 21 | 2 |
17 896
|
|
| 22.0322.0260.320 | 2.6 | 3 | 75 | 36 | 32 | 37 | 2 |
20 856
|
|
| 22.0322.0260.470 | 2.6 | 3 | 82 | 52 | 47 | 53 | 2 |
22 943
|
|
| 22.0322.0260.670 | 2.6 | 3 | 120 | 71 | 67 | 72 | 2 |
Снят с производства
|
|
| 22.0322.0260.800 | 2.6 | 3 | 130 | 84 | 80 | 85 | 2 |
Снят с производства
|
|
| 22.0322.0265.160 | 2.65 | 3 | 60 | 20 | 16 | 21 | 2 |
17 896
|
|
| 22.0322.0265.320 | 2.65 | 3 | 75 | 36 | 32 | 37 | 2 |
20 856
|
|
| 22.0322.0265.480 | 2.65 | 3 | 82 | 53 | 48 | 54 | 2 |
22 943
|
|
| 22.0322.0265.680 | 2.65 | 3 | 120 | 72 | 68 | 73 | 2 |
Снят с производства
|
|
| 22.0322.0265.810 | 2.65 | 3 | 130 | 85 | 81 | 86 | 2 |
Снят с производства
|
|
| 22.0322.0270.170 | 2.7 | 3 | 60 | 21 | 17 | 22 | 2 |
17 896
|
|
| 22.0322.0270.330 | 2.7 | 3 | 75 | 37 | 33 | 38 | 2 |
20 856
|
|
| 22.0322.0270.490 | 2.7 | 3 | 90 | 54 | 49 | 55 | 2 |
22 943
|
|
| 22.0322.0270.690 | 2.7 | 3 | 120 | 73 | 69 | 74 | 2 |
Снят с производства
|
|
| 22.0322.0270.830 | 2.7 | 3 | 130 | 87 | 83 | 88 | 2 |
Снят с производства
|
|
| 22.0322.0275.170 | 2.75 | 3 | 60 | 21 | 17 | 22 | 2 |
17 896
|
|
| 22.0322.0275.330 | 2.75 | 3 | 75 | 37 | 33 | 38 | 2 |
20 856
|
|
| 22.0322.0275.500 | 2.75 | 3 | 90 | 54 | 50 | 56 | 2 |
22 943
|
|
| 22.0322.0275.710 | 2.75 | 3 | 120 | 75 | 71 | 76 | 2 |
Снят с производства
|
|
| 22.0322.0275.850 | 2.75 | 3 | 130 | 89 | 85 | 90 | 2 |
Снят с производства
|
|
| 22.0322.0280.170 | 2.8 | 3 | 60 | 21 | 17 | 22 | 2 |
17 896
|
|
| 22.0322.0280.340 | 2.8 | 3 | 75 | 38 | 34 | 39 | 2 |
20 856
|
|
| 22.0322.0280.530 | 2.8 | 3 | 90 | 57 | 53 | 58 | 2 |
22 943
|
|
| 22.0322.0280.720 | 2.8 | 3 | 120 | 76 | 72 | 77 | 2 |
Снят с производства
|
|
| 22.0322.0280.860 | 2.8 | 3 | 130 | 90 | 86 | 91 | 2 |
Снят с производства
|
|
| 22.0322.0285.180 | 2.85 | 3 | 60 | 23 | 18 | 24 | 2 |
17 896
|
|
| 22.0322.0285.350 | 2.85 | 3 | 75 | 39 | 35 | 40 | 2 |
20 856
|
|
| 22.0322.0285.530 | 2.85 | 3 | 90 | 57 | 53 | 58 | 2 |
22 943
|
|
| 22.0322.0285.730 | 2.85 | 3 | 120 | 77 | 73 | 78 | 2 |
Снят с производства
|
|
| 22.0322.0285.880 | 2.85 | 3 | 130 | 92 | 88 | 93 | 2 |
Снят с производства
|
|
| 22.0322.0290.180 | 2.9 | 3 | 60 | 23 | 18 | 24 | 2 |
17 896
|
|
| 22.0322.0290.350 | 2.9 | 3 | 75 | 39 | 35 | 40 | 2 |
20 856
|
|
| 22.0322.0290.530 | 2.9 | 3 | 90 | 57 | 53 | 58 | 2 |
22 943
|
|
| 22.0322.0290.740 | 2.9 | 3 | 120 | 78 | 74 | 79 | 2 |
Снят с производства
|
|
| 22.0322.0290.890 | 2.9 | 3 | 130 | 93 | 89 | 94 | 2 |
Снят с производства
|
|
| 22.0322.0295.180 | 2.95 | 3 | 60 | 23 | 18 | 24 | 2 |
17 896
|
|
| 22.0322.0295.360 | 2.95 | 3 | 75 | 40 | 36 | 41 | 2 |
20 856
|
|
| 22.0322.0295.540 | 2.95 | 3 | 90 | 58 | 54 | 59 | 2 |
22 943
|
|
| 22.0322.0295.740 | 2.95 | 3 | 120 | 78 | 74 | 79 | 2 |
Снят с производства
|
|
| 22.0322.0295.890 | 2.95 | 3 | 130 | 93 | 89 | 94 | 2 |
Снят с производства
|
|
