Твёрдосплавное сверло с внутренним подводом СОЖ и хвостовиком по din 6535 HA для высокопроизводительного сверления сталей до 52 HRC

Арт. 22.0406

Обладают однородными и высокими механическими свойствами по всему сечению, что обеспечивается в процессе сквозной прокаливаемости. Определяются высокой размерной точностью и стабильностью формы. Имеют отверстия для внутреннего охлаждения.

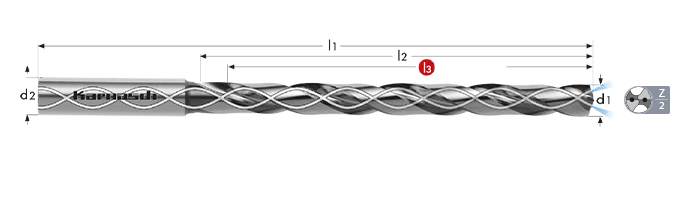

Артикул	d1	d2	l1	l2	l3	Z
22.0406.0300.023	3	6	66	28	23	2
22.0406.0300.029	3	6	72	34	29	2
22.0406.0300.048	3	6	92	54	48	2
22.0406.0310.023	3.1	6	66	28	23	2
22.0406.0310.029	3.1	6	72	34	29	2
22.0406.0310.048	3.1	6	92	54	48	2
22.0406.0320.023	3.2	6	66	28	23	2
22.0406.0320.029	3.2	6	72	34	29	2
22.0406.0320.048	3.2	6	92	54	48	2
22.0406.0330.023	3.3	6	66	28	23	2
22.0406.0330.029	3.3	6	72	34	29	2
22.0406.0330.048	3.3	6	92	54	48	2
22.0406.0340.023	3.4	6	66	28	23	2
22.0406.0340.029	3.4	6	72	34	29	2
22.0406.0340.048	3.4	6	92	54	48	2
22.0406.0350.023	3.5	6	66	28	23	2
22.0406.0350.029	3.5	6	72	34	29	2
22.0406.0350.048	3.5	6	92	54	48	2
22.0406.0360.023	3.6	6	66	28	23	2
22.0406.0360.029	3.6	6	72	34	29	2
22.0406.0360.048	3.6	6	92	54	48	2
22.0406.0365.023	3.65	6	66	28	23	2
22.0406.0370.023	3.7	6	66	28	23	2
22.0406.0370.029	3.7	6	72	34	29	2
22.0406.0370.048	3.7	6	92	54	48	2
22.0406.0380.029	3.8	6	74	36	29	2
22.0406.0380.036	3.8	6	81	43	36	2
22.0406.0380.058	3.8	6	102	64	58	2
22.0406.0390.029	3.9	6	74	36	29	2
22.0406.0390.036	3.9	6	81	43	36	2
22.0406.0390.058	3.9	6	102	64	58	2
22.0406.0400.029	4	6	74	36	29	2
22.0406.0400.036	4	6	81	43	36	2
22.0406.0400.058	4	6	102	64	58	2
22.0406.0410.029	4.1	6	74	36	29	2
22.0406.0410.036	4.1	6	81	43	36	2
22.0406.0410.058	4.1	6	102	64	58	2
22.0406.0420.029	4.2	6	74	36	29	2
22.0406.0420.036	4.2	6	81	43	36	2
22.0406.0420.058	4.2	6	102	64	58	2
22.0406.0430.029	4.3	6	74	36	29	2
22.0406.0430.036	4.3	6	81	43	36	2
22.0406.0430.058	4.3	6	102	64	58	2
22.0406.0440.029	4.4	6	74	36	29	2
22.0406.0440.036	4.4	6	81	43	36	2
22.0406.0440.058	4.4	6	102	64	58	2
22.0406.0450.029	4.5	6	74	36	29	2
22.0406.0450.036	4.5	6	81	43	36	2
22.0406.0450.058	4.5	6	102	64	58	2
22.0406.0460.029	4.6	6	74	36	29	2
22.0406.0460.036	4.6	6	81	43	36	2
22.0406.0460.058	4.6	6	102	64	58	2
22.0406.0465.029	4.65	6	74	36	29	2
22.0406.0470.029	4.7	6	74	36	29	2
22.0406.0470.036	4.7	6	81	43	36	2
22.0406.0470.058	4.7	6	102	64	58	2
22.0406.0480.035	4.8	6	82	44	35	2
22.0406.0480.048	4.8	6	95	57	48	2
22.0406.0480.070	4.8	6	116	78	70	2
22.0406.0490.035	4.9	6	82	44	35	2
22.0406.0490.048	4.9	6	95	57	48	2
22.0406.0490.070	4.9	6	116	78	70	2
22.0406.0500.035	5	6	82	44	35	2
22.0406.0500.048	5	6	95	57	48	2
22.0406.0500.070	5	6	116	78	70	2
22.0406.0510.035	5.1	6	82	44	35	2
22.0406.0510.048	5.1	6	95	57	48	2
22.0406.0510.070	5.1	6	116	78	70	2
22.0406.0520.035	5.2	6	82	44	35	2
22.0406.0520.048	5.2	6	95	57	48	2
22.0406.0520.070	5.2	6	116	78	70	2
22.0406.0530.035	5.3	6	82	44	35	2
22.0406.0530.048	5.3	6	95	57	48	2
22.0406.0530.070	5.3	6	116	78	70	2
22.0406.0540.035	5.4	6	82	44	35	2
22.0406.0540.048	5.4	6	95	57	48	2
22.0406.0540.070	5.4	6	116	78	70	2
22.0406.0550.035	5.5	6	82	44	35	2
22.0406.0550.048	5.5	6	95	57	48	2
22.0406.0550.070	5.5	6	116	78	70	2
22.0406.0555.035	5.55	6	82	44	35	2
22.0406.0560.035	5.6	6	82	44	35	2
22.0406.0560.048	5.6	6	95	57	48	2
22.0406.0560.070	5.6	6	116	78	70	2
22.0406.0570.035	5.7	6	82	44	35	2
22.0406.0570.048	5.7	6	95	57	48	2
22.0406.0570.070	5.7	6	116	78	70	2
22.0406.0580.035	5.8	6	82	44	35	2
22.0406.0580.048	5.8	6	95	57	48	2
22.0406.0580.070	5.8	6	116	78	70	2
22.0406.0590.035	5.9	6	82	44	35	2
22.0406.0590.048	5.9	6	95	57	48	2
22.0406.0590.070	5.9	6	116	78	70	2
22.0406.0600.035	6	6	82	44	35	2
22.0406.0600.048	6	6	95	57	48	2
22.0406.0600.070	6	6	116	78	70	2
22.0406.0610.043	6.1	8	91	53	43	2
22.0406.0610.064	6.1	8	114	76	64	2
22.0406.0610.094	6.1	8	146	108	94	2
22.0406.0620.043	6.2	8	91	53	43	2
22.0406.0620.064	6.2	8	114	76	64	2
22.0406.0620.094	6.2	8	146	108	94	2
22.0406.0630.043	6.3	8	91	53	43	2
22.0406.0630.064	6.3	8	114	76	64	2
22.0406.0630.094	6.3	8	146	108	94	2
22.0406.0640.043	6.4	8	91	53	43	2
22.0406.0640.064	6.4	8	114	76	64	2
22.0406.0640.094	6.4	8	146	108	94	2
22.0406.0650.043	6.5	8	91	53	43	2
22.0406.0650.064	6.5	8	114	76	64	2
22.0406.0650.094	6.5	8	146	108	94	2
22.0406.0660.043	6.6	8	91	53	43	2
22.0406.0660.064	6.6	8	114	76	64	2
22.0406.0660.094	6.6	8	146	108	94	2
22.0406.0670.043	6.7	8	91	53	43	2
22.0406.0670.064	6.7	8	114	76	64	2
22.0406.0670.094	6.7	8	146	108	94	2
22.0406.0680.043	6.8	8	91	53	43	2
22.0406.0680.064	6.8	8	114	76	64	2
22.0406.0680.094	6.8	8	146	108	94	2
22.0406.0690.043	6.9	8	91	53	43	2
22.0406.0690.064	6.9	8	114	76	64	2
22.0406.0690.094	6.9	8	146	108	94	2
22.0406.0700.043	7	8	91	53	43	2
22.0406.0700.066	7	8	114	76	64	2
22.0406.0700.094	7	8	146	108	94	2
22.0406.0710.043	7.1	8	91	53	43	2
22.0406.0710.066	7.1	8	114	76	64	2
22.0406.0710.094	7.1	8	146	108	94	2
22.0406.0720.043	7.2	8	91	53	43	2
22.0406.0720.066	7.2	8	114	76	64	2
22.0406.0720.094	7.2	8	146	108	94	2
22.0406.0730.043	7.3	8	91	53	43	2
22.0406.0730.066	7.3	8	114	76	64	2
22.0406.0730.094	7.3	8	146	108	94	2
22.0406.0740.043	7.4	8	91	53	43	2
22.0406.0740.066	7.4	8	114	76	64	2
22.0406.0740.094	7.4	8	146	108	94	2
22.0406.0745.043	7.45	8	91	53	43	2
22.0406.0750.043	7.5	8	91	53	43	2
22.0406.0750.066	7.5	8	114	76	64	2
22.0406.0750.094	7.5	8	146	108	94	2
22.0406.0760.043	7.6	8	91	53	43	2
22.0406.0760.066	7.6	8	114	76	64	2
22.0406.0760.094	7.6	8	146	108	94	2
22.0406.0770.043	7.7	8	91	53	43	2
22.0406.0770.066	7.7	8	114	76	64	2
22.0406.0770.094	7.7	8	146	108	94	2
22.0406.0780.043	7.8	8	91	53	43	2
22.0406.0780.066	7.8	8	114	76	64	2
22.0406.0780.094	7.8	8	146	108	94	2
22.0406.0790.043	7.9	8	91	53	43	2
22.0406.0790.066	7.9	8	114	76	64	2
22.0406.0790.094	7.9	8	146	108	94	2
22.0406.0800.043	8	8	91	53	43	2
22.0406.0800.066	8	8	114	76	64	2
22.0406.0800.094	8	8	146	108	94	2
22.0406.0810.049	8.1	10	103	61	49	2
22.0406.0810.080	8.1	10	142	95	80	2
22.0406.0810.110	8.1	10	162	120	110	2
22.0406.0820.049	8.2	10	103	61	49	2
22.0406.0820.080	8.2	10	142	95	80	2
22.0406.0820.110	8.2	10	162	120	110	2
22.0406.0830.049	8.3	10	103	61	49	2
22.0406.0830.080	8.3	10	142	95	80	2
22.0406.0830.110	8.3	10	162	120	110	2
22.0406.0840.049	8.4	10	103	61	49	2
22.0406.0840.080	8.4	10	142	95	80	2
22.0406.0840.110	8.4	10	162	120	110	2
22.0406.0850.049	8.5	10	103	61	49	2
22.0406.0850.080	8.5	10	142	95	80	2
22.0406.0850.110	8.5	10	162	120	110	2
22.0406.0860.049	8.6	10	103	61	49	2
22.0406.0860.080	8.6	10	142	95	80	2
22.0406.0860.110	8.6	10	162	120	110	2
22.0406.0870.049	8.7	10	103	61	49	2
22.0406.0870.080	8.7	10	142	95	80	2
22.0406.0870.110	8.7	10	162	120	110	2
22.0406.0880.049	8.8	10	103	61	49	2
22.0406.0880.080	8.8	10	142	95	80	2
22.0406.0880.110	8.8	10	162	120	110	2
22.0406.0890.049	8.9	10	103	61	49	2
22.0406.0890.080	8.9	10	142	95	80	2
22.0406.0890.110	8.9	10	162	120	110	2
22.0406.0900.049	9	10	103	61	49	2
22.0406.0900.080	9	10	142	95	80	2
22.0406.0900.110	9	10	162	120	110	2
22.0406.0910.049	9.1	10	103	61	49	2
22.0406.0910.080	9.1	10	142	95	80	2
22.0406.0910.110	9.1	10	162	120	110	2
22.0406.0920.049	9.2	10	103	61	49	2
22.0406.0920.080	9.2	10	142	95	80	2
22.0406.0920.110	9.2	10	162	120	110	2
22.0406.0930.049	9.3	10	103	61	49	2
22.0406.0930.080	9.3	10	142	95	80	2
22.0406.0930.110	9.3	10	162	120	110	2
22.0406.0935.049	9.35	10	103	61	49	2
22.0406.0940.049	9.4	10	103	61	49	2
22.0406.0940.080	9.4	10	142	95	80	2
22.0406.0940.110	9.4	10	162	120	110	2
22.0406.0950.049	9.5	10	103	61	49	2
22.0406.0950.080	9.5	10	142	95	80	2
22.0406.0950.110	9.5	10	162	120	110	2
22.0406.0960.049	9.6	10	103	61	49	2
22.0406.0960.080	9.6	10	142	95	80	2
22.0406.0960.110	9.6	10	162	120	110	2
22.0406.0970.049	9.7	10	103	61	49	2
22.0406.0970.080	9.7	10	142	95	80	2
22.0406.0970.110	9.7	10	162	120	110	2
22.0406.0980.049	9.8	10	103	61	49	2
22.0406.0980.080	9.8	10	142	95	80	2
22.0406.0980.110	9.8	10	162	120	110	2
22.0406.0990.049	9.9	10	103	61	49	2
22.0406.0990.080	9.9	10	142	95	80	2
22.0406.0990.110	9.9	10	162	120	110	2
22.0406.1000.049	10	10	103	61	49	2
22.0406.1000.080	10	10	142	95	80	2
22.0406.1000.110	10	10	162	120	110	2
22.0406.1010.056	10.1	12	118	71	56	2
22.0406.1010.096	10.1	12	162	114	96	2
22.0406.1010.142	10.1	12	204	156	142	2
22.0406.1020.056	10.2	12	118	71	56	2
22.0406.1020.096	10.2	12	162	114	96	2
22.0406.1020.142	10.2	12	204	156	142	2
22.0406.1030.056	10.3	12	118	71	56	2
22.0406.1030.096	10.3	12	162	114	96	2
22.0406.1030.142	10.3	12	204	156	142	2
22.0406.1040.056	10.4	12	118	71	56	2
22.0406.1040.096	10.4	12	162	114	96	2
22.0406.1040.142	10.4	12	204	156	142	2
22.0406.1050.056	10.5	12	118	71	56	2
22.0406.1050.096	10.5	12	162	114	96	2
22.0406.1050.142	10.5	12	204	156	142	2
22.0406.1080.056	10.8	12	118	71	56	2
22.0406.1080.096	10.8	12	162	114	96	2
22.0406.1080.142	10.8	12	204	156	142	2
22.0406.1100.056	11	12	118	71	56	2
22.0406.1100.096	11	12	162	114	96	2
22.0406.1100.142	11	12	204	156	142	2
22.0406.1110.142	11.1	12	204	156	142	2
22.0406.1120.056	11.2	12	118	71	56	2
22.0406.1120.142	11.2	12	204	156	142	2
22.0406.1150.056	11.5	12	118	71	56	2
22.0406.1150.096	11.5	12	162	114	96	2
22.0406.1150.142	11.5	12	204	156	142	2
22.0406.1200.056	12	12	118	71	56	2
22.0406.1200.096	12	12	162	114	96	2
22.0406.1200.142	12	12	204	156	142	2
22.0406.1250.060	12.5	14	124	77	60	2
22.0406.1250.112	12.5	14	178	133	112	2
22.0406.1250.166	12.5	14	230	182	166	2
22.0406.1280.060	12.8	14	124	77	60	2
22.0406.1280.112	12.8	14	178	133	112	2
22.0406.1280.166	12.8	14	230	182	166	2
22.0406.1300.060	13	14	124	77	60	2
22.0406.1300.112	13	14	178	133	112	2
22.0406.1300.166	13	14	230	182	166	2
22.0406.1350.060	13.5	14	124	77	60	2
22.0406.1350.112	13.5	14	178	133	112	2
22.0406.1350.166	13.5	14	230	182	166	2
22.0406.1380.060	13.8	14	124	77	60	2
22.0406.1400.060	14	14	124	77	60	2
22.0406.1400.112	14	14	178	133	112	2
22.0406.1450.063	14.5	16	133	83	63	2
22.0406.1450.128	14.5	16	203	152	128	2
22.0406.1450.192	14.5	16	260	208	192	2
22.0406.1480.192	14.8	16	260	208	192	2
22.0406.1500.063	15	16	133	83	63	2
22.0406.1500.128	15	16	203	152	128	2
22.0406.1550.063	15.5	16	133	83	63	2
22.0406.1580.192	15.8	16	260	208	192	2
22.0406.1600.063	16	16	133	83	63	2
22.0406.1600.128	16	16	203	152	128	2
22.0406.1800.216	18	18	285	234	216	2
