Твёрдосплавное сверло для сверления закалённых сталей 55-70 HRC
Обладают однородными и высокими механическими свойствами по всему сечению, что обеспечивается в процессе сквозной прокаливаемости. Определяются высокой размерной точностью и стабильностью формы.
Варианты артикула

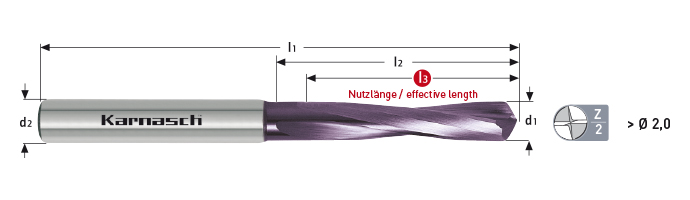

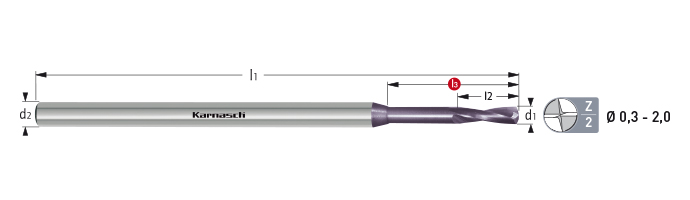

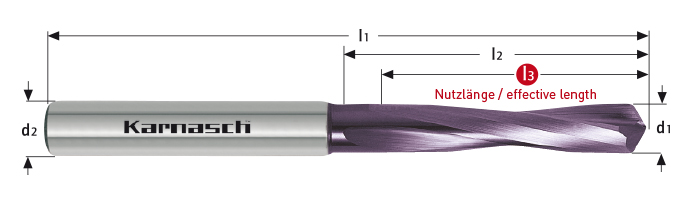

| Артикул | d1 | d2 | f | l1 | l2 | l3 | l3 | Z | d1_M | Цена, ₽ | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 22.0468.0030 | 0.3 | 3 | 38 | 0.9 | 2.5 | 2 |
13 147
|
||||
| 22.0468.0040 | 0.4 | 3 | 38 | 1.2 | 3 | 2 |
13 147
|
||||
| 22.0468.0050 | 0.5 | 3 | 38 | 1.5 | 4 | 2 |
13 147
|
||||
| 22.0468.0060 | 0.6 | 3 | 38 | 1.8 | 4.5 | 2 |
13 147
|
||||
| 22.0468.0070 | 0.7 | 3 | 38 | 2.1 | 5.5 | 2 |
13 147
|
||||
| 22.0468.0080 | 0.8 | 3 | 38 | 2.4 | 6.5 | 2 |
13 147
|
||||
| 22.0468.0090 | 0.9 | 3 | 38 | 2.7 | 7.5 | 2 |
13 147
|
||||
| 22.0468.0100 | 1 | 3 | 38 | 3 | 8 | 2 |
13 147
|
||||
| 22.0468.0110 | 1.1 | 3 | 50 | 3.3 | 8 | 2 |
13 853
|
||||
| 22.0468.0120 | 1.2 | 3 | 50 | 3.6 | 10 | 2 |
13 853
|
||||
| 22.0468.0130 | 1.3 | 3 | 50 | 3.9 | 12 | 2 |
13 853
|
||||
| 22.0468.0140 | 1.4 | 3 | 50 | 4.2 | 12 | 2 |
13 853
|
||||
| 22.0468.0150 | 1.5 | 3 | 50 | 4.5 | 12 | 2 |
13 853
|
||||
| 22.0468.0160 | 1.6 | 3 | 50 | 4.8 | 15 | 2 |
13 853
|
||||
| 22.0468.0170 | 1.7 | 3 | 50 | 5.1 | 15 | 2 |
13 853
|
||||
| 22.0468.0180 | 1.8 | 3 | 50 | 5.4 | 15 | 2 |
13 853
|
||||
| 22.0468.0190 | 1.9 | 3 | 50 | 5.8 | 15 | 2 |
13 853
|
||||
| 22.0468.0200 | 2 | 3 | 50 | 6 | 16 | 2 |
13 853
|
||||
| 22.0468.0260 | 2.6 | 3 | 46 | 16 | 6 | 2 | M3x0,5 |
8 767
|
|||
| 22.0468.0260.014 | 2.6 | 6 | 62 | 20 | 14 | 2 | M3x0,5 |
11 253
|
|||
| 22.0468.0270.014 | 2.7 | 6 | 62 | 20 | 14 | 2 |
11 253
|
||||
| 22.0468.0280.014 | 2.8 | 6 | 62 | 20 | 14 | 2 |
11 253
|
||||
| 22.0468.0290.014 | 2.9 | 6 | 62 | 20 | 14 | 2 |
11 253
|
||||
| 22.0468.0300 | 3 | 3 | 46 | 16 | 6 | 2 |
0
|
||||
| 22.0468.0300.014 | 3 | 6 | 62 | 20 | 14 | 2 |
11 253
|
||||
| 22.0468.0310.014 | 3.1 | 6 | 62 | 20 | 14 | 2 |
11 253
|
||||
| 22.0468.0320 | 3.2 | 4 | 48 | 16 | 6 | 2 |
8 836
|
||||
| 22.0468.0320.014 | 3.2 | 6 | 62 | 20 | 14 | 2 |
11 253
|
||||
| 22.0468.0330 | 3.3 | 4 | 48 | 16 | 6 | 2 |
8 767
|
||||
| 22.0468.0330.014 | 3.3 | 6 | 62 | 20 | 14 | 2 |
11 253
|
||||
| 22.0468.0340 | 3.4 | 4 | 50 | 20 | 10 | 2 |
0
|
||||
| 22.0468.0340.014 | 3.4 | 6 | 62 | 20 | 14 | 2 |
11 253
|
||||
| 22.0468.0350 | 3.5 | 4 | 50 | 20 | 10 | 2 | M4x0,7 |
0
|
|||
| 22.0468.0350.014 | 14 | 3.5 | 62 | 20 | 20 | 14 | 6 | 2 | M4x0,7 |
11 253
|
|
| 22.0468.0360.014 | 14 | 3.6 | 62 | 20 | 20 | 14 | 6 | 2 |
11 253
|
||
| 22.0468.0370.014 | 14 | 3.7 | 62 | 20 | 20 | 14 | 6 | 2 |
11 253
|
||
| 22.0468.0380 | 3.8 | 4 | 52 | 22 | 12 | 2 |
8 836
|
||||
| 22.0468.0380.017 | 3.8 | 6 | 66 | 24 | 17 | 2 |
15 058
|
||||
| 22.0468.0390 | 3.9 | 4 | 52 | 22 | 12 | 2 |
0
|
||||
| 22.0468.0390.017 | 3.9 | 6 | 66 | 24 | 17 | 2 |
15 058
|
||||
| 22.0468.0400 | 4 | 4 | 52 | 22 | 12 | 2 |
8 836
|
||||
| 22.0468.0400.017 | 4 | 6 | 66 | 24 | 17 | 2 |
15 058
|
||||
| 22.0468.0410 | 4.1 | 6 | 65 | 25 | 15 | 2 |
10 149
|
||||
| 22.0468.0410.017 | 4,1 | 6 | 66 | 24 | 17 | 2 |
15 058
|
||||
| 22.0468.0420 | 4.2 | 6 | 65 | 25 | 15 | 2 |
0
|
||||
| 22.0468.0420.017 | 4.2 | 6 | 66 | 24 | 17 | 2 |
15 058
|
||||
| 22.0468.0430 | 4.3 | 6 | 68 | 28 | 15 | 2 |
0
|
||||
| 22.0468.0430.017 | 4.3 | 6 | 66 | 24 | 17 | 2 |
15 058
|
||||
| 22.0468.0440 | 4.4 | 6 | 68 | 28 | 15 | 2 | M5x0,8 |
0
|
|||
| 22.0468.0440.017 | 4.4 | 6 | 66 | 24 | 17 | 2 | M5x0,8 |
15 058
|
|||
| 22.0468.0450 | 4.5 | 6 | 68 | 28 | 15 | 2 |
0
|
||||
| 22.0468.0450.017 | 4.5 | 6 | 66 | 24 | 17 | 2 |
15 058
|
||||
| 22.0468.0460.017 | 4.6 | 6 | 66 | 24 | 17 | 2 |
15 058
|
||||
| 22.0468.0470 | 4.7 | 6 | 68 | 28 | 15 | 2 |
10 149
|
||||
| 22.0468.0470.017 | 4.7 | 6 | 66 | 24 | 17 | 2 |
15 058
|
||||
| 22.0468.0480 | 4.8 | 6 | 72 | 32 | 18 | 2 |
10 562
|
||||
| 22.0468.0480.020 | 4.8 | 6 | 66 | 28 | 20 | 2 |
15 058
|
||||
| 22.0468.0490 | 4.9 | 6 | 72 | 32 | 18 | 2 |
10 562
|
||||
| 22.0468.0490.020 | 4.9 | 6 | 66 | 28 | 20 | 2 |
15 058
|
||||
| 22.0468.0500 | 5 | 6 | 72 | 32 | 18 | 2 |
10 562
|
||||
| 22.0468.0500.020 | 5 | 6 | 66 | 28 | 20 | 2 |
15 058
|
||||
| 22.0468.0510 | 5.1 | 6 | 72 | 32 | 18 | 2 |
10 562
|
||||
| 22.0468.0510.020 | 5.1 | 6 | 66 | 28 | 20 | 2 |
15 058
|
||||
| 22.0468.0520 | 5.2 | 6 | 72 | 32 | 18 | 2 |
10 562
|
||||
| 22.0468.0520.020 | 5.2 | 6 | 66 | 28 | 20 | 2 |
15 058
|
||||
| 22.0468.0530 | 5.3 | 6 | 72 | 32 | 18 | 2 | M6x1 |
0
|
|||
| 22.0468.0530.020 | 5.3 | 6 | 66 | 28 | 20 | 2 | M6x1 |
15 058
|
|||
| 22.0468.0540.020 | 5.4 | 6 | 66 | 28 | 20 | 2 |
15 058
|
||||
| 22.0468.0550 | 5.5 | 6 | 75 | 35 | 18 | 2 |
0
|
||||
| 22.0468.0550.020 | 5.5 | 6 | 66 | 28 | 20 | 2 |
15 058
|
||||
| 22.0468.0560 | 5.6 | 6 | 75 | 35 | 18 | 2 |
10 562
|
||||
| 22.0468.0560.020 | 5.6 | 6 | 66 | 28 | 20 | 2 |
15 058
|
||||
| 22.0468.0570 | 5.7 | 6 | 75 | 35 | 18 | 2 |
10 562
|
||||
| 22.0468.0570.020 | 5.7 | 6 | 66 | 28 | 20 | 2 |
15 058
|
||||
| 22.0468.0580 | 5.8 | 6 | 75 | 35 | 18 | 2 |
10 562
|
||||
| 22.0468.0580.020 | 5.8 | 6 | 66 | 28 | 20 | 2 |
15 058
|
||||
| 22.0468.0590 | 5.9 | 6 | 75 | 35 | 18 | 2 |
0
|
||||
| 22.0468.0590.020 | 5.9 | 6 | 66 | 28 | 20 | 2 |
15 058
|
||||
| 22.0468.0600 | 6 | 6 | 75 | 35 | 18 | 2 |
0
|
||||
| 22.0468.0600.020 | 6 | 6 | 66 | 28 | 20 | 2 |
15 058
|
||||
| 22.0468.0610 | 6.1 | 8 | 80 | 40 | 25 | 2 |
0
|
||||
| 22.0468.0610.024 | 6.1 | 8 | 79 | 34 | 24 | 2 |
20 626
|
||||
| 22.0468.0620.024 | 6.2 | 8 | 79 | 34 | 24 | 2 |
20 626
|
||||
| 22.0468.0630.024 | 6.3 | 8 | 79 | 34 | 24 | 2 |
20 626
|
||||
| 22.0468.0640 | 6.4 | 8 | 80 | 40 | 25 | 2 |
13 186
|
||||
| 22.0468.0640.024 | 6.4 | 8 | 79 | 34 | 24 | 2 |
20 626
|
||||
| 22.0468.0650 | 6.5 | 8 | 80 | 40 | 25 | 2 |
13 186
|
||||
| 22.0468.0650.024 | 6.5 | 8 | 79 | 34 | 24 | 2 |
20 626
|
||||
| 22.0468.0660 | 6.6 | 8 | 80 | 40 | 25 | 2 |
13 186
|
||||
| 22.0468.0660.024 | 6.6 | 8 | 79 | 34 | 24 | 2 |
20 626
|
||||
| 22.0468.0670 | 6.7 | 8 | 80 | 40 | 25 | 2 |
13 186
|
||||
| 22.0468.0670.024 | 6.7 | 8 | 79 | 34 | 24 | 2 |
20 626
|
||||
| 22.0468.0680 | 6.8 | 8 | 85 | 45 | 30 | 2 |
13 669
|
||||
| 22.0468.0680.024 | 6,8 | 8 | 79 | 34 | 24 | 2 |
20 626
|
||||
| 22.0468.0690 | 6.9 | 8 | 85 | 45 | 30 | 2 |
0
|
||||
| 22.0468.0690.024 | 6.9 | 8 | 79 | 34 | 24 | 2 |
20 626
|
||||
| 22.0468.0700 | 7 | 8 | 85 | 45 | 30 | 2 |
13 669
|
||||
| 22.0468.0700.024 | 7 | 8 | 79 | 34 | 24 | 2 |
20 626
|
||||
| 22.0468.0710 | 7.1 | 8 | 85 | 45 | 30 | 2 | M8x1,25 |
Снят с производства
|
|||
| 22.0468.0710.029 | 29 | 7.1 | 79 | 41 | 41 | 29 | 8 | 2 | M8x1,25 |
20 626
|
|
| 22.0468.0720 | 7.2 | 8 | 85 | 45 | 30 | 2 |
13 669
|
||||
| 22.0468.0720.029 | 7,2 | 8 | 79 | 41 | 29 | 2 |
20 626
|
||||
| 22.0468.0730 | 7.3 | 8 | 85 | 45 | 30 | 2 | M8x1 |
13 669
|
|||
| 22.0468.0730.029 | 7.3 | 8 | 79 | 41 | 29 | 2 | M8x1 |
20 626
|
|||
| 22.0468.0740.029 | 7.4 | 8 | 79 | 41 | 29 | 2 |
20 626
|
||||
| 22.0468.0750 | 7.5 | 8 | 85 | 45 | 30 | 2 |
13 669
|
||||
| 22.0468.0750.029 | 7.5 | 8 | 79 | 41 | 29 | 2 |
20 626
|
||||
| 22.0468.0760 | 7.6 | 8 | 98 | 50 | 35 | 2 |
17 328
|
||||
| 22.0468.0760.029 | 7.6 | 8 | 79 | 41 | 29 | 2 |
20 626
|
||||
| 22.0468.0770.029 | 7.7 | 8 | 79 | 41 | 29 | 2 |
20 626
|
||||
| 22.0468.0780 | 7.8 | 8 | 98 | 50 | 35 | 2 |
17 328
|
||||
| 22.0468.0780.029 | 7.8 | 8 | 79 | 41 | 29 | 2 |
20 626
|
||||
| 22.0468.0790.029 | 7.9 | 8 | 79 | 41 | 29 | 2 |
20 626
|
||||
| 22.0468.0800 | 8 | 8 | 98 | 50 | 35 | 2 |
17 328
|
||||
| 22.0468.0800.029 | 8 | 8 | 79 | 41 | 29 | 2 |
20 626
|
||||
| 22.0468.0810.035 | 8.1 | 10 | 89 | 47 | 35 | 2 |
22 506
|
||||
| 22.0468.0820.035 | 8.2 | 10 | 89 | 47 | 35 | 2 |
22 506
|
||||
| 22.0468.0830.035 | 8.3 | 10 | 89 | 47 | 35 | 2 |
22 506
|
||||
| 22.0468.0840.035 | 8.4 | 10 | 89 | 47 | 35 | 2 |
22 506
|
||||
| 22.0468.0850 | 8.5 | 10 | 98 | 50 | 35 | 2 |
17 328
|
||||
| 22.0468.0850.035 | 8.5 | 10 | 89 | 47 | 35 | 2 |
22 506
|
||||
| 22.0468.0860 | 8.6 | 10 | 105 | 57 | 42 | 2 |
17 328
|
||||
| 22.0468.0860.035 | 8.6 | 10 | 89 | 47 | 35 | 2 |
22 506
|
||||
| 22.0468.0870.035 | 8.7 | 10 | 89 | 47 | 35 | 2 |
22 506
|
||||
| 22.0468.0880 | 8.8 | 10 | 105 | 57 | 42 | 2 | M10x1,5 |
17 328
|
|||
| 22.0468.0880.035 | 8.8 | 10 | 89 | 47 | 35 | 2 | M10x1,5 |
22 506
|
|||
| 22.0468.0890.035 | 8.9 | 10 | 89 | 47 | 35 | 2 |
22 506
|
||||
| 22.0468.0900.035 | 9 | 10 | 89 | 47 | 35 | 2 |
22 506
|
||||
| 22.0468.0910.035 | 9.1 | 10 | 89 | 47 | 35 | 2 |
22 506
|
||||
| 22.0468.0920.035 | 9.2 | 10 | 89 | 47 | 35 | 2 |
22 506
|
||||
| 22.0468.0930 | 9.3 | 10 | 105 | 57 | 42 | 2 | M10x1,0 |
17 328
|
|||
| 22.0468.0930.035 | 9.3 | 10 | 89 | 47 | 35 | 2 | M10x1,0 |
22 506
|
|||
| 22.0468.0940.035 | 9.4 | 10 | 89 | 47 | 35 | 2 |
22 506
|
||||
| 22.0468.0950 | 9.5 | 10 | 105 | 57 | 42 | 2 |
Снят с производства
|
||||
| 22.0468.0950.035 | 9.5 | 10 | 89 | 47 | 35 | 2 |
22 506
|
||||
| 22.0468.0960.035 | 9.6 | 10 | 89 | 47 | 35 | 2 |
22 506
|
||||
| 22.0468.0970 | 9.7 | 10 | 111 | 63 | 45 | 2 |
17 328
|
||||
| 22.0468.0970.035 | 9.7 | 10 | 89 | 47 | 35 | 2 |
22 506
|
||||
| 22.0468.0980 | 9.8 | 10 | 111 | 63 | 45 | 2 |
0
|
||||
| 22.0468.0980.035 | 9.8 | 10 | 89 | 47 | 35 | 2 |
22 506
|
||||
| 22.0468.0990.035 | 9.9 | 10 | 89 | 47 | 35 | 2 |
22 506
|
||||
| 22.0468.1000 | 10 | 10 | 111 | 63 | 45 | 2 |
17 328
|
||||
| 22.0468.1000.035 | 10 | 10 | 89 | 47 | 35 | 2 |
22 506
|
||||
| 22.0468.1010.040 | 10.1 | 12 | 102 | 55 | 40 | 2 |
27 147
|
||||
| 22.0468.1020 | 10.2 | 10 | 111 | 63 | 45 | 2 |
20 987
|
||||
| 22.0468.1020.040 | 10.2 | 12 | 102 | 55 | 40 | 2 |
27 147
|
||||
| 22.0468.1030 | 10.3 | 10 | 111 | 63 | 45 | 2 |
20 987
|
||||
| 22.0468.1030.040 | 10,3 | 12 | 102 | 55 | 40 | 2 |
27 147
|
||||
| 22.0468.1040.040 | 10.4 | 12 | 102 | 55 | 40 | 2 |
27 147
|
||||
| 22.0468.1050 | 10.5 | 12 | 111 | 63 | 45 | 2 | M12x1,75 |
20 987
|
|||
| 22.0468.1050.040 | 10.5 | 12 | 102 | 55 | 40 | 2 | M12x1,75 |
27 147
|
|||
| 22.0468.1060.040 | 10.6 | 12 | 102 | 55 | 40 | 2 |
27 147
|
||||
| 22.0468.1070.040 | 10.7 | 12 | 102 | 55 | 40 | 2 |
27 147
|
||||
| 22.0468.1080 | 10.8 | 12 | 111 | 63 | 50 | 2 | M12x1,5 |
21 263
|
|||
| 22.0468.1080.040 | 10.8 | 12 | 102 | 55 | 40 | 2 | M12x1,5 |
27 147
|
|||
| 22.0468.1090.040 | 10.9 | 12 | 102 | 55 | 40 | 2 |
27 147
|
||||
| 22.0468.1100 | 11 | 12 | 119 | 71 | 50 | 2 |
21 263
|
||||
| 22.0468.1100.040 | 11 | 12 | 102 | 55 | 40 | 2 |
27 147
|
||||
| 22.0468.1110.040 | 11.1 | 12 | 102 | 55 | 40 | 2 |
27 147
|
||||
| 22.0468.1120.040 | 11.2 | 12 | 102 | 55 | 40 | 2 |
27 147
|
||||
| 22.0468.1130.040 | 11.3 | 12 | 102 | 55 | 40 | 2 |
27 147
|
||||
| 22.0468.1140.040 | 11.4 | 12 | 102 | 55 | 40 | 2 |
27 147
|
||||
| 22.0468.1150 | 11.5 | 12 | 119 | 71 | 50 | 2 |
Снят с производства
|
||||
| 22.0468.1150.040 | 11.5 | 12 | 102 | 55 | 40 | 2 |
27 147
|
||||
| 22.0468.1160.040 | 11.6 | 12 | 102 | 55 | 40 | 2 |
27 147
|
||||
| 22.0468.1170.040 | 11.7 | 12 | 102 | 55 | 40 | 2 |
27 147
|
||||
| 22.0468.1180.040 | 11.8 | 12 | 102 | 55 | 40 | 2 |
27 147
|
||||
| 22.0468.1190 | 11.9 | 12 | 119 | 71 | 50 | 2 |
21 815
|
||||
| 22.0468.1190.040 | 11.9 | 12 | 102 | 55 | 40 | 2 |
27 147
|
||||
| 22.0468.1200 | 12 | 12 | 119 | 71 | 50 | 2 |
21 815
|
||||
| 22.0468.1200.040 | 12 | 12 | 102 | 55 | 40 | 2 |
27 147
|
||||
| 22.0468.1300 | 13 | 14 | 125 | 77 | 55 | 2 |
25 819
|
||||
| 22.0468.1400 | 14 | 14 | 125 | 77 | 55 | 2 |
25 819
|
||||
