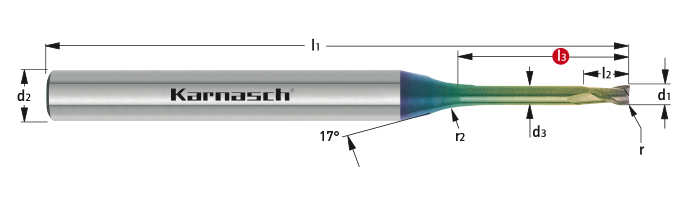

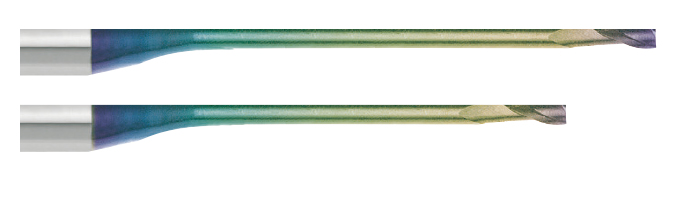

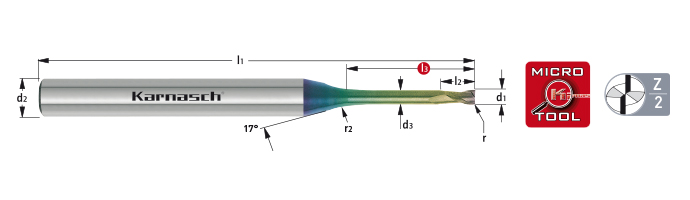

Твёрдосплавная концевая микрофреза с угловым радиусом, глубина обработки до 15хD, диаметр хвостовика 4 мм
Варианты артикула
| Артикул | d1 | d2 | d3 | l1 | l2 | l3 | r | r2 | Z | Цена, ₽ | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 30.6203.0010.002.002 | 0.1 | 4 | 0.08 | 45 | 0.1 | 0.2 | 0.02 | 1 | 2 |
13 883
|
|
| 30.6203.0010.002.003 | 0.1 | 4 | 0.08 | 45 | 0.1 | 0.3 | 0.02 | 1 | 2 |
13 883
|
|
| 30.6203.0010.002.004 | 0.1 | 4 | 0.08 | 45 | 0.1 | 0.4 | 0.02 | 1 | 2 |
13 883
|
|
| 30.6203.0020.005.000 | 0.2 | 4 | 0.17 | 50 | 0.15 | 0.5 | 0.05 | 1 | 2 |
Снят с производства
|
|
| 30.6203.0020.005.005 | 0.2 | 4 | 0.17 | 50 | 0.15 | 0.5 | 0.05 | 1 | 2 |
13 928
|
|
| 30.6203.0020.005.010 | 0.2 | 4 | 0.17 | 50 | 0.15 | 1 | 0.05 | 1 | 2 |
13 928
|
|
| 30.6203.0020.005.015 | 0.2 | 4 | 0.17 | 50 | 0.15 | 1.5 | 0.05 | 1 | 2 |
13 928
|
|
| 30.6203.0020.005.020 | 0.2 | 4 | 0.17 | 50 | 0.15 | 2 | 0.05 | 1 | 2 |
13 928
|
|
| 30.6203.0030.005.010 | 0.3 | 4 | 0.27 | 50 | 0.25 | 1 | 0.05 | 2 | 2 |
11 684
|
|
| 30.6203.0030.005.015 | 0.3 | 4 | 0.27 | 50 | 0.25 | 1.5 | 0.05 | 2 | 2 |
11 684
|
|
| 30.6203.0030.005.020 | 0.3 | 4 | 0.27 | 50 | 0.25 | 2 | 0.05 | 2 | 2 |
11 684
|
|
| 30.6203.0030.005.025 | 0.3 | 4 | 0.27 | 50 | 0.25 | 2.5 | 0.05 | 2 | 2 |
11 684
|
|
| 30.6203.0030.005.030 | 0.3 | 4 | 0.27 | 50 | 0.25 | 3 | 0.05 | 2 | 2 |
11 684
|
|
| 30.6203.0030.005.050 | 0.3 | 4 | 0.27 | 50 | 0.25 | 5 | 0.05 | 2 | 2 |
11 684
|
|
| 30.6203.0040.005.020 | 0.4 | 4 | 0.37 | 50 | 0.3 | 2 | 0.05 | 2 | 2 |
11 684
|
|
| 30.6203.0040.005.040 | 0.4 | 4 | 0.37 | 50 | 0.3 | 4 | 0.05 | 2 | 2 |
11 684
|
|
| 30.6203.0040.010.010 | 0.4 | 4 | 0.37 | 50 | 0.3 | 1 | 0.1 | 2 | 2 |
11 684
|
|
| 30.6203.0040.010.015 | 0.4 | 4 | 0.37 | 50 | 0.3 | 1.5 | 0.1 | 2 | 2 |
11 684
|
|
| 30.6203.0040.010.020 | 0.4 | 4 | 0.37 | 50 | 0.3 | 2 | 0.1 | 2 | 2 |
11 684
|
|
| 30.6203.0040.010.030 | 0.4 | 4 | 0.37 | 50 | 0.3 | 3 | 0.1 | 2 | 2 |
11 684
|
|
| 30.6203.0040.010.040 | 0.4 | 4 | 0.37 | 50 | 0.3 | 4 | 0.1 | 2 | 2 |
11 684
|
|
| 30.6203.0050.005.020 | 0.5 | 4 | 0.47 | 50 | 0.35 | 2 | 0.05 | 2 | 2 |
9 885
|
|
| 30.6203.0050.005.030 | 0.5 | 4 | 0.47 | 50 | 0.35 | 3 | 0.05 | 2 | 2 |
9 885
|
|
| 30.6203.0050.005.040 | 0.5 | 4 | 0.47 | 50 | 0.35 | 4 | 0.05 | 2 | 2 |
9 885
|
|
| 30.6203.0050.005.050 | 0.5 | 4 | 0.47 | 50 | 0.35 | 5 | 0.05 | 2 | 2 |
9 885
|
|
| 30.6203.0050.010.010 | 0.5 | 4 | 0.47 | 50 | 0.35 | 1 | 0.1 | 2 | 2 |
9 885
|
|
| 30.6203.0050.010.020 | 0.5 | 4 | 0.47 | 50 | 0.35 | 2 | 0.1 | 2 | 2 |
9 885
|
|
| 30.6203.0050.010.030 | 0.5 | 4 | 0.47 | 50 | 0.35 | 3 | 0.1 | 2 | 2 |
9 885
|
|
| 30.6203.0050.010.040 | 0.5 | 4 | 0.47 | 50 | 0.35 | 4 | 0.1 | 2 | 2 |
9 885
|
|
| 30.6203.0050.010.050 | 0.5 | 4 | 0.47 | 50 | 0.35 | 5 | 0.1 | 2 | 2 |
9 885
|
|
| 30.6203.0050.010.060 | 0.5 | 4 | 0.47 | 50 | 0.35 | 6 | 0.1 | 2 | 2 |
9 885
|
|
| 30.6203.0060.006.020 | 0.6 | 4 | 0.57 | 50 | 0.4 | 2 | 0.06 | 4 | 2 |
8 977
|
|
| 30.6203.0060.006.040 | 0.6 | 4 | 0.57 | 50 | 0.4 | 4 | 0.06 | 4 | 2 |
8 977
|
|
| 30.6203.0060.006.060 | 0.6 | 4 | 0.57 | 50 | 0.4 | 6 | 0.06 | 4 | 2 |
8 977
|
|
| 30.6203.0060.006.080 | 0.6 | 4 | 0.57 | 50 | 0.4 | 8 | 0.06 | 4 | 2 |
8 977
|
|
| 30.6203.0060.010.020 | 0.6 | 4 | 0.57 | 50 | 0.4 | 2 | 0.1 | 4 | 2 |
8 977
|
|
| 30.6203.0060.010.030 | 0.6 | 4 | 0.57 | 50 | 0.4 | 3 | 0.1 | 4 | 2 |
8 977
|
|
| 30.6203.0060.010.040 | 0.6 | 4 | 0.57 | 50 | 0.4 | 4 | 0.1 | 4 | 2 |
8 977
|
|
| 30.6203.0060.010.050 | 0.6 | 4 | 0.57 | 50 | 0.4 | 5 | 0.1 | 4 | 2 |
8 977
|
|
| 30.6203.0060.010.060 | 0.6 | 4 | 0.57 | 50 | 0.4 | 6 | 0.1 | 4 | 2 |
8 977
|
|
| 30.6203.0060.010.080 | 0.6 | 4 | 0.57 | 50 | 0.4 | 8 | 0.1 | 4 | 2 |
8 977
|
|
| 30.6203.0080.008.040 | 0.8 | 4 | 0.77 | 50 | 0.5 | 4 | 0.08 | 4 | 2 |
8 977
|
|
| 30.6203.0080.008.060 | 0.8 | 4 | 0.77 | 50 | 0.5 | 6 | 0.08 | 4 | 2 |
8 977
|
|
| 30.6203.0080.008.080 | 0.8 | 4 | 0.77 | 50 | 0.5 | 8 | 0.08 | 4 | 2 |
8 977
|
|
| 30.6203.0080.008.100 | 0.8 | 4 | 0.77 | 50 | 0.5 | 10 | 0.08 | 4 | 2 |
8 977
|
|
| 30.6203.0080.020.020 | 0.8 | 4 | 0.77 | 50 | 0.5 | 2 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0080.020.040 | 0.8 | 4 | 0.77 | 50 | 0.5 | 4 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0080.020.050 | 0.8 | 4 | 0.77 | 50 | 0.5 | 5 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0080.020.060 | 0.8 | 4 | 0.77 | 50 | 0.5 | 6 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0080.020.080 | 0.8 | 4 | 0.77 | 50 | 0.5 | 8 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0080.020.100 | 0.8 | 4 | 0.77 | 50 | 0.5 | 10 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0100.010.030 | 1 | 4 | 0.96 | 50 | 0.8 | 3 | 0.1 | 4 | 2 |
8 977
|
|
| 30.6203.0100.010.050 | 1 | 4 | 0.96 | 50 | 0.8 | 5 | 0.1 | 4 | 2 |
8 977
|
|
| 30.6203.0100.010.070 | 1 | 4 | 0.96 | 50 | 0.8 | 7 | 0.1 | 4 | 2 |
8 977
|
|
| 30.6203.0100.010.100 | 1 | 4 | 0.96 | 50 | 0.8 | 10 | 0.1 | 4 | 2 |
8 977
|
|
| 30.6203.0100.010.120 | 1 | 4 | 0.96 | 55 | 0.8 | 12 | 0.1 | 4 | 2 |
8 977
|
|
| 30.6203.0100.010.150 | 1 | 4 | 0.96 | 55 | 0.8 | 15 | 0.1 | 4 | 2 |
8 977
|
|
| 30.6203.0100.010.200 | 1 | 4 | 0.96 | 60 | 0.8 | 20 | 0.1 | 4 | 2 |
8 977
|
|
| 30.6203.0100.020.020 | 1 | 4 | 0.96 | 50 | 0.8 | 2 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0100.020.030 | 1 | 4 | 0.96 | 50 | 0.8 | 3 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0100.020.040 | 1 | 4 | 0.96 | 50 | 0.8 | 4 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0100.020.050 | 1 | 4 | 0.96 | 50 | 0.8 | 5 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0100.020.060 | 1 | 4 | 0.96 | 50 | 0.8 | 6 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0100.020.070 | 1 | 4 | 0.96 | 50 | 0.8 | 7 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0100.020.080 | 1 | 4 | 0.96 | 50 | 0.8 | 8 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0100.020.090 | 1 | 4 | 0.96 | 50 | 0.8 | 9 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0100.020.100 | 1 | 4 | 0.96 | 50 | 0.8 | 10 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0100.020.120 | 1 | 4 | 0.96 | 55 | 0.8 | 12 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0100.020.150 | 1 | 4 | 0.96 | 55 | 0.8 | 15 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0120.020.060 | 1.2 | 4 | 1.15 | 50 | 1 | 6 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0120.020.080 | 1.2 | 4 | 1.15 | 50 | 1 | 8 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0120.020.120 | 1.2 | 4 | 1.15 | 55 | 1 | 12 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0150.015.040 | 1.5 | 4 | 1.44 | 50 | 1.35 | 4 | 0.15 | 4 | 2 |
8 977
|
|
| 30.6203.0150.015.060 | 1.5 | 4 | 1.44 | 50 | 1.35 | 6 | 0.15 | 4 | 2 |
8 977
|
|
| 30.6203.0150.015.080 | 1.5 | 4 | 1.44 | 50 | 1.35 | 8 | 0.15 | 4 | 2 |
8 977
|
|
| 30.6203.0150.015.100 | 1.5 | 4 | 1.44 | 50 | 1.35 | 10 | 0.15 | 4 | 2 |
8 977
|
|
| 30.6203.0150.015.120 | 1.5 | 4 | 1.44 | 55 | 1.35 | 12 | 0.15 | 4 | 2 |
8 977
|
|
| 30.6203.0150.015.160 | 1.5 | 4 | 1.44 | 55 | 1.35 | 16 | 0.15 | 4 | 2 |
8 977
|
|
| 30.6203.0150.015.200 | 1.5 | 4 | 1.44 | 60 | 1.35 | 20 | 0.15 | 4 | 2 |
9 191
|
|
| 30.6203.0150.020.040 | 1.5 | 4 | 1.44 | 50 | 1.35 | 4 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0150.020.060 | 1.5 | 4 | 1.44 | 50 | 1.35 | 6 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0150.020.080 | 1.5 | 4 | 1.44 | 50 | 1.35 | 8 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0150.020.100 | 1.5 | 4 | 1.44 | 50 | 1.35 | 10 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0150.020.120 | 1.5 | 4 | 1.44 | 55 | 1.35 | 12 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0150.020.140 | 1.5 | 4 | 1.44 | 55 | 1.35 | 14 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0150.020.160 | 1.5 | 4 | 1.44 | 55 | 1.35 | 16 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0150.020.180 | 1.5 | 4 | 1.44 | 60 | 1.35 | 18 | 0.2 | 4 | 2 |
9 191
|
|
| 30.6203.0150.020.200 | 1.5 | 4 | 1.44 | 60 | 1.35 | 20 | 0.2 | 4 | 2 |
9 191
|
|
| 30.6203.0200.020.040 | 2 | 4 | 1.92 | 50 | 1.7 | 4 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0200.020.060 | 2 | 4 | 1.92 | 50 | 1.7 | 6 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0200.020.080 | 2 | 4 | 1.92 | 50 | 1.7 | 8 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0200.020.100 | 2 | 4 | 1.92 | 50 | 1.7 | 10 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0200.020.120 | 2 | 4 | 1.92 | 55 | 1.7 | 12 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0200.020.150 | 2 | 4 | 1.92 | 55 | 1.7 | 15 | 0.2 | 4 | 2 |
8 977
|
|
| 30.6203.0200.020.200 | 2 | 4 | 1.92 | 60 | 1.7 | 20 | 0.2 | 4 | 2 |
9 191
|
|
| 30.6203.0200.020.250 | 2 | 4 | 1.92 | 65 | 1.7 | 25 | 0.2 | 4 | 2 |
9 199
|
|
| 30.6203.0200.020.300 | 2 | 4 | 1.92 | 65 | 1.7 | 30 | 0.2 | 4 | 2 |
9 199
|
|
| 30.6203.0200.050.040 | 2 | 4 | 1.92 | 50 | 1.7 | 4 | 0.5 | 4 | 2 |
8 977
|
|
| 30.6203.0200.050.060 | 2 | 4 | 1.92 | 50 | 1.7 | 6 | 0.5 | 4 | 2 |
8 977
|
|
| 30.6203.0200.050.080 | 2 | 4 | 1.92 | 50 | 1.7 | 8 | 0.5 | 4 | 2 |
8 977
|
|
| 30.6203.0200.050.100 | 2 | 4 | 1.92 | 50 | 1.7 | 10 | 0.5 | 4 | 2 |
8 977
|
|
| 30.6203.0200.050.120 | 2 | 4 | 1.92 | 55 | 1.7 | 12 | 0.5 | 4 | 2 |
8 977
|
|
| 30.6203.0200.050.150 | 2 | 4 | 1.92 | 55 | 1.7 | 15 | 0.5 | 4 | 2 |
8 977
|
|
| 30.6203.0200.050.200 | 2 | 4 | 1.92 | 60 | 1.7 | 20 | 0.5 | 4 | 2 |
9 191
|
|
| 30.6203.0300.030.100 | 3 | 4 | 2.9 | 65 | 3 | 10 | 0.3 | 4 | 2 |
9 422
|
|
| 30.6203.0300.030.150 | 3 | 4 | 2.9 | 65 | 3 | 15 | 0.3 | 4 | 2 |
9 422
|
|
| 30.6203.0300.030.200 | 3 | 4 | 2.9 | 65 | 3 | 20 | 0.3 | 4 | 2 |
9 422
|
|
| 30.6203.0300.030.250 | 3 | 4 | 2.9 | 75 | 3 | 25 | 0.3 | 4 | 2 |
10 546
|
|
| 30.6203.0300.030.300 | 3 | 4 | 2.9 | 75 | 3 | 30 | 0.3 | 4 | 2 |
10 546
|
|
| 30.6203.0300.050.150 | 3 | 4 | 2.9 | 65 | 3 | 15 | 0.5 | 4 | 2 |
9 422
|
|
| 30.6203.0300.050.200 | 3 | 4 | 2.9 | 65 | 3 | 20 | 0.5 | 4 | 2 |
9 422
|
|
| 30.6203.0400.030.100 | 4 | 6 | 3.9 | 65 | 4 | 10 | 0.3 | 4 | 2 |
9 841
|
|
| 30.6203.0400.030.150 | 4 | 6 | 3.9 | 65 | 4 | 15 | 0.3 | 4 | 2 |
9 841
|
|
| 30.6203.0400.030.200 | 4 | 6 | 3.9 | 65 | 4 | 20 | 0.3 | 4 | 2 |
9 841
|
|
| 30.6203.0400.030.250 | 4 | 6 | 3.9 | 75 | 4 | 25 | 0.3 | 4 | 2 |
10 063
|
|
| 30.6203.0400.030.300 | 4 | 6 | 3.9 | 75 | 4 | 30 | 0.3 | 4 | 2 |
10 063
|
|
| 30.6203.0400.050.200 | 4 | 6 | 3.9 | 65 | 4 | 20 | 0.5 | 4 | 2 |
9 841
|
|
| 30.6203.0400.050.300 | 4 | 6 | 3.9 | 75 | 4 | 30 | 0.5 | 4 | 2 |
10 063
|
|
| 30.6203.0500.030.200 | 5 | 6 | 4.9 | 65 | 5 | 20 | 0.3 | 4 | 2 |
9 841
|
|
| 30.6203.0500.030.300 | 5 | 6 | 4.9 | 75 | 5 | 30 | 0.3 | 4 | 2 |
10 063
|
|
| 30.6203.0500.030.400 | 5 | 6 | 4.9 | 90 | 5 | 40 | 0.3 | 4 | 2 |
10 721
|
|
| 30.6203.0600.030.200 | 6 | 6 | 5.9 | 65 | 6 | 20 | 0.3 | 4 | 2 |
9 841
|
|
| 30.6203.0600.030.300 | 6 | 6 | 5.9 | 75 | 6 | 30 | 0.3 | 4 | 2 |
10 063
|
|
| 30.6203.0600.030.400 | 6 | 6 | 5.9 | 90 | 6 | 40 | 0.3 | 4 | 2 |
10 721
|
|
| 30.6203.0600.030.500 | 6 | 6 | 5.9 | 90 | 6 | 50 | 0.3 | 4 | 2 |
10 721
|
|
| 30.6203.0600.050.200 | 6 | 6 | 5.9 | 65 | 6 | 20 | 0.5 | 4 | 2 |
9 841
|
|
| 30.6203.0600.050.300 | 6 | 6 | 5.9 | 75 | 6 | 30 | 0.5 | 4 | 2 |
10 063
|
|
| 30.6203.0600.100.250 | 6 | 6 | 5.9 | 65 | 6 | 25 | 1 | 4 | 2 |
10 063
|
|
