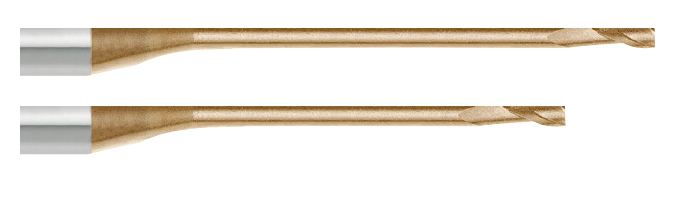

Твёрдосплавная концевая микрофреза с угловым радиусом, глубина обработки 2-30хD, диаметр хвостовика 6 мм

Арт. 30.6261
Твёрдосплавная концевая микрофреза с угловым радиусом, глубина обработки 2-30хD, диаметр хвостовика 6 мм

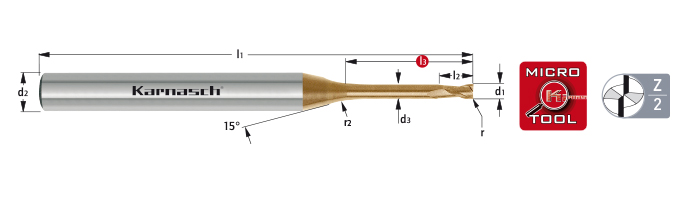

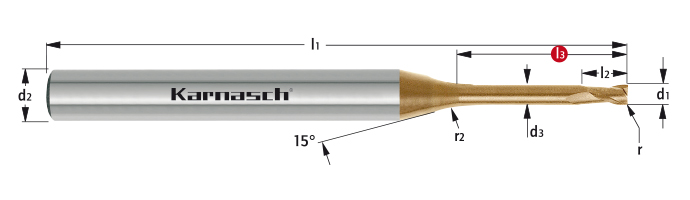

Артикул d1 d2 d3 l1 l2 l3 r2 Z
30.6261.0020.005.005 0.260.18550.30.512
30.6261.0020.005.01 0.260.18550.3112
30.6261.0030.005.01 0.360.28550.45122
30.6261.0030.005.02 0.360.28550.45222
30.6261.0030.005.03 0.360.28550.45322
30.6261.0030.005.05 0.360.28550.45552
30.6261.0040.005.02 0.460.38550.6222
30.6261.0040.005.03 0.460.38550.6322
30.6261.0040.005.04 0.460.38550.6422
30.6261.0040.005.05 0.460.38550.6552
30.6261.0040.005.06 0.460.38550.6652
30.6261.0050.005.02 0.560.48550.7222
30.6261.0050.005.03 0.560.48550.7322
30.6261.0050.005.04 0.560.48550.7422
30.6261.0050.005.05 0.560.48550.7552
30.6261.0060.006.02 0.660.58550.9242
30.6261.0060.006.03 0.660.58550.9342
30.6261.0060.006.04 0.660.58550.9442
30.6261.0060.006.06 0.660.58550.9642
30.6261.0070.007.08 0.760.67551.18102
30.6261.0080.008.02 0.860.77551.2242
30.6261.0080.008.04 0.860.77551.2442
30.6261.0080.008.05 0.860.77551.2542
30.6261.0080.008.06 0.860.77551.2642
30.6261.0080.008.08 0.860.77551.2842
30.6261.0080.008.10 0.860.77651.21042
30.6261.0090.009.12 0.960.87651.312102
30.6261.0100.010.03 160.95551.6342
30.6261.0100.010.04 160.95551.6442
30.6261.0100.010.05 160.95551.6542
30.6261.0100.010.06 160.95551.6642
30.6261.0100.010.07 160.95551.6742
30.6261.0100.010.08 160.95551.6842
30.6261.0100.010.10 160.95651.61042
30.6261.0100.010.12 160.95651.61242
30.6261.0100.010.15 160.95651.61542
30.6261.0100.010.20 160.95651.62042
30.6261.0100.030.04 160.95551.6442
30.6261.0100.030.08 160.95551.6842
30.6261.0100.030.12 160.95651.61242
30.6261.0120.012.06 1.261.15551.9642
30.6261.0120.012.08 1.261.15551.9842
30.6261.0120.012.10 1.261.15651.91042
30.6261.0120.012.12 1.261.15651.91242
30.6261.0120.012.15 1.261.15651.915102
30.6261.0120.012.20 1.261.15651.920102
30.6261.0120.012.25 1.261.15701.925102
30.6261.0120.030.06 1.261.15551.9642
30.6261.0120.030.10 1.261.15651.91042
30.6261.0120.030.15 1.261.15651.915102
30.6261.0140.014.08 1.461.35552.2842
30.6261.0140.014.15 1.461.35652.21542
30.6261.0150.015.06 1.561.44552.4642
30.6261.0150.015.08 1.561.44552.4842
30.6261.0150.015.10 1.561.44652.41042
30.6261.0150.015.12 1.561.44652.41242
30.6261.0150.015.15 1.561.44652.41542
30.6261.0150.015.20 1.561.44652.42042
30.6261.0150.030.06 1.561.44552.4642
30.6261.0150.030.12 1.561.44652.41242
30.6261.0150.030.20 1.561.44652.42042
30.6261.0160.016.15 1.661.54652.515102
30.6261.0180.018.10 1.861.74652.61042
30.6261.0180.018.20 1.861.74652.62042
30.6261.0200.020.06 261.92552.8642
30.6261.0200.020.08 261.92552.8842
30.6261.0200.020.10 261.92652.81042
30.6261.0200.020.12 261.92652.81242
30.6261.0200.020.15 261.92652.81542
30.6261.0200.020.20 261.92652.82042
30.6261.0200.020.25 261.92702.82542
30.6261.0200.020.30 261.92752.83042
30.6261.0200.030.25 261.92702.825102
30.6261.0200.050.08 261.92552.8842
30.6261.0200.050.15 261.92652.81542
30.6261.0200.050.25 261.92702.82542
30.6261.0250.025.10 2.562.4652.51042
30.6261.0250.025.15 2.562.4652.51542
30.6261.0250.025.20 2.562.4652.52042
30.6261.0250.025.25 2.562.4702.52542
30.6261.0300.030.10 362.96531042
30.6261.0300.030.20 362.96532042
30.6261.0300.030.30 362.97533042
30.6261.0300.050.10 362.96531042
30.6261.0300.050.15 362.96531542
30.6261.0300.050.20 362.96532042
30.6261.0300.050.25 362.97032542
30.6261.0300.050.30 362.97533042
30.6261.0400.050.10 463.96541042
30.6261.0400.050.15 463.96541542
30.6261.0400.050.20 463.96542042
30.6261.0400.050.25 463.97042542
30.6261.0400.050.30 463.97543042
30.6261.0500.050.10 564.965510102
30.6261.0500.050.15 564.96551542
30.6261.0500.050.20 564.96552042
30.6261.0500.050.30 564.97553042
30.6261.0500.050.40 564.99054042
30.6261.0600.050.10 665.96561042
30.6261.0600.050.15 665.96561542
30.6261.0600.050.20 665.96562042
30.6261.0600.050.30 665.97563042
30.6261.0600.050.40 665.99064042
30.6261.0600.050.50 665.990650102
