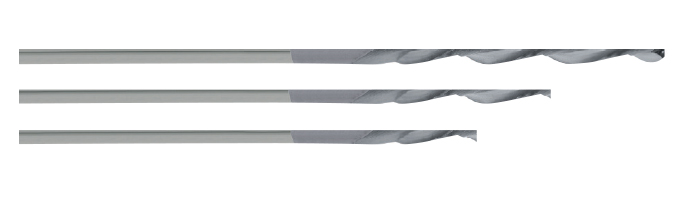

Твёрдосплавная сферическая фреза с алмазным покрытием для высокоскоростной обработки

Арт. 30.6574

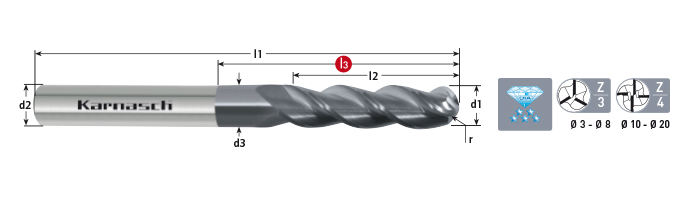

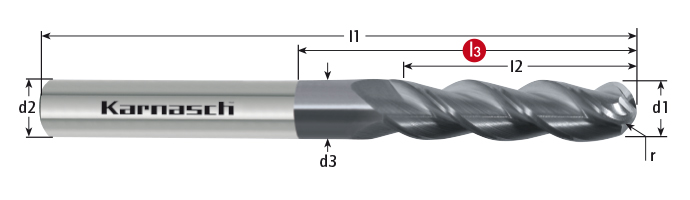

Артикул	d2 h5	d1	l2	l3	l1	d3	z	r
30.6574.0300.010	4	3,0	10	-	50	-	3	1,5
30.6574.0300.020	4	3,0	20	-	60	-	3	1,5
30.6574.0300.030	4	3,0	30	-	75	-	3	1,5
30.6574.0300.035	4	3,0	35	50	100	2,8	3	1,5
30.6574.0400.010	6	4,0	10	-	50	-	3	2,0
30.6574.0400.020	6	4,0	20	-	60	-	3	2,0
30.6574.0400.030	6	4,0	30	-	75	-	3	2,0
30.6574.0400.040	6	4,0	40	50	100	3,8	3	2,0
30.6574.0500.020	6	5,0	20	-	60	-	3	2,5
30.6574.0500.030	6	5,0	30	-	75	-	3	2,5
30.6574.0500.040	6	5,0	40	50	100	4,8	3	2,5
30.6574.0600.030	6	6,0	30	-	75	-	3	3,0
30.6574.0600.040	6	6,0	40	50	100	-	3	3,0
30.6574.0800.030	8	8,0	30	-	75	-	3	4,0
30.6574.0800.040	8	8,0	40	60	120	7,8	3	4,0
30.6574.1000.030	10	10,0	30	-	75	-	4	5,0
30.6574.1000.040	10	10,0	40	-	100	-	4	5,0
30.6574.1000.060	10	10,0	60	-	120	-	4	5,0
30.6574.1200.045	12	12,0	45	-	100	-	4	6,0
30.6574.1200.075	12	12,0	75	-	120	-	4	6,0
30.6574.1600.045	16	16,0	45	-	100	-	4	8,0
30.6574.1600.075	16	16,0	75	-	150	-	4	8,0
30.6574.2000.055	20	20,0	55	-	100	-	4	10,0
30.6574.2000.075	20	20,0	75	-	150	-	4	10,0
30.6574.2000.110	20	20,0	110	-	180	-	4	10,0
