Твёрдосплавная сферическая фреза для высокоскоростной обработки титановых сплавов

Арт. 30.7485

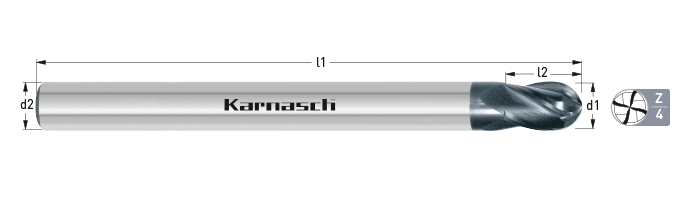

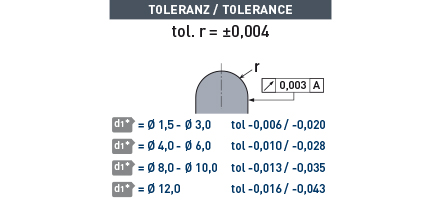

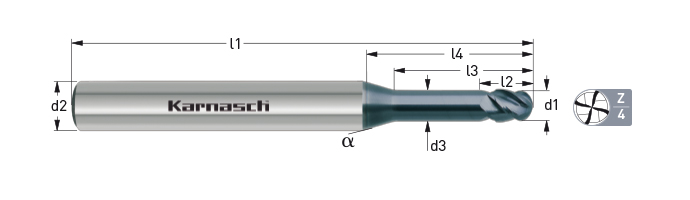

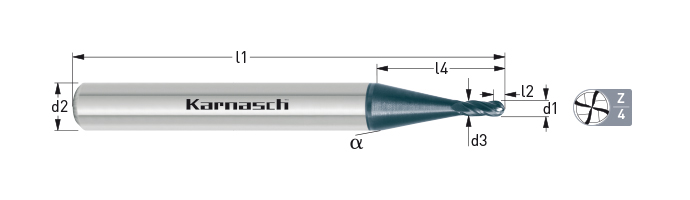

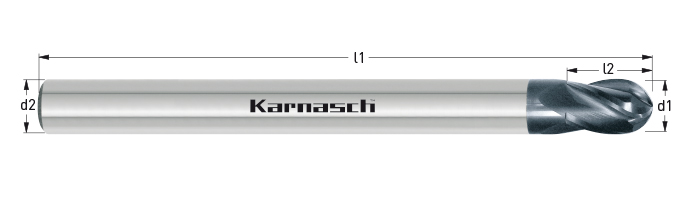

Артикул	d2 h5	d1 f8	l4	α	l2	r ±0,004	l3	l1	d3	z
30.7485.0150.08.55	6	1,5	20	12	2,5	0,75	8,0	55	1,4	4
30.7485.0200.055	6	2,0	-	12	4	1,0	-	55	-	4
30.7485.0200.08.55	6	2,0	20	12	3,0	1,0	8,0	55	1,8	4
30.7485.0200.080	6	2,0	-	12	4	1,0	--	80	1,8	4
30.7485.0250.10.55	6	2,5	20	12	3,25	1,25	10,0	55	2,3	4
30.7485.0300.055	6	3,0	-	12	5	1,5	-	55	-	4
30.7485.0300.080	6	3,0	-	12	5	1,5	-	80	-	4
30.7485.0300.10.55	6	3,0	20	12	3,5	1,5	10,0	55	2,8	4
30.7485.0300.14.55	6	3,0	20	12	3,5	1,5	14,0	55	2,8	4
30.7485.0300.18.55	6	3,0	20	12	3,5	1,5	18,0	55	2,8	4
30.7485.0400.055	6	4,0	-	12	8	2,0	-	55	-	4
30.7485.0400.080	6	4,0	-	12	8	2,0	-	80	-	4
30.7485.0400.12.55	6	4,0	20	12	4	2,0	12,0	55	3,8	4
30.7485.0400.16.55	6	4,0	20	12	4	2,0	16,0	55	3,8	4
30.7485.0500.055	6	5,0	-	12	9	2,5	-	55	-	4
30.7485.0500.080	6	5,0	-	12	9	2,5	-	80	-	4
30.7485.0600.055	6	6,0	-	-	10	3,0	-	55	-	4
30.7485.0600.100	6	6,0	-	-	10	3,0	-	100	-	4
30.7485.0800.060	8	8,0	-	-	12	4,0	-	60	-	4
30.7485.0800.100	8	8,0	-	-	12	4,0	-	100	-	4
30.7485.1000.068	10	10,0	-	-	14	5,0	-	68	-	4
30.7485.1000.100	10	10,0	-	-	14	5,0	-	100	-	4
30.7485.1200.075	12	12,0	-	-	16	6,0	-	75	-	4
30.7485.1200.100	12	12,0	-	-	16	6,0	-	100	-	4
