Твёрдосплавная сферическая фреза для высокоскоростной обработки нержавеющих сталей

Арт. 30.7487

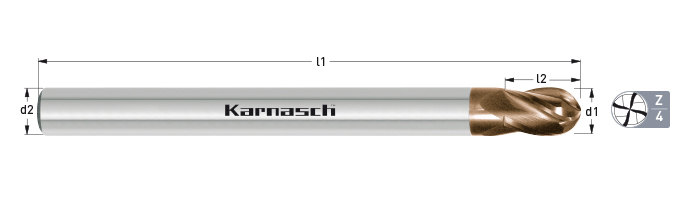

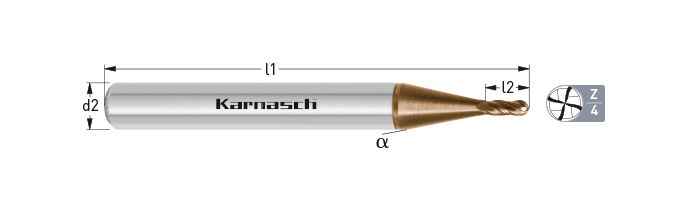

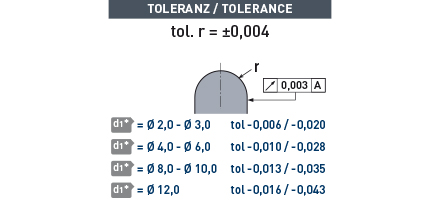

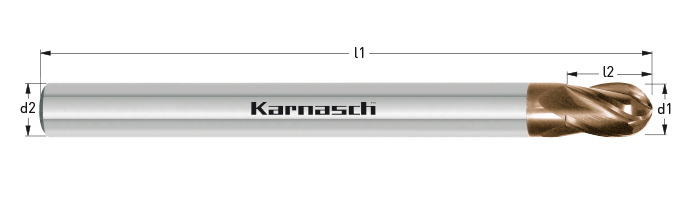

Артикул	d2 h5	d1 f8	α	l2	r ±0,004	l1	z
30.7487.0200.055	6	2,0	12	4	1,0	55	4
30.7487.0200.080	6	2,0	12	4	1,0	80	4
30.7487.0300.055	6	3,0	12	5	1,5	55	4
30.7487.0300.080	6	3,0	12	5	1,5	80	4
30.7487.0400.055	6	4,0	12	8	2,0	55	4
30.7487.0400.080	6	4,0	12	8	2,0	80	4
30.7487.0500.055	6	5,0	12	9	2,5	55	4
30.7487.0500.080	6	5,0	12	9	2,5	80	4
30.7487.0600.055	6	6,0	-	10	3,0	55	4
30.7487.0600.100	6	6,0	-	10	3,0	100	4
30.7487.0800.060	8	8,0	-	12	4,0	60	4
30.7487.0800.100	8	8,0	-	12	4,0	100	4
30.7487.1000.068	10	10,0	-	14	5,0	68	4
30.7487.1000.100	10	10,0	-	14	5,0	100	4
30.7487.1200.075	12	12,0	-	16	6,0	75	4
30.7487.1200.100	12	12,0	-	16	6,0	100	4
