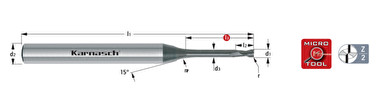

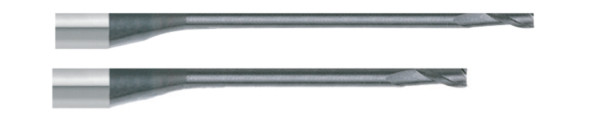

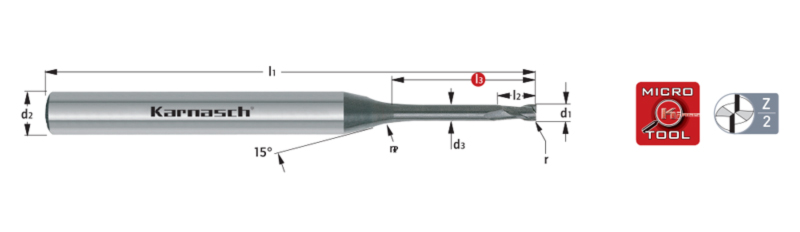

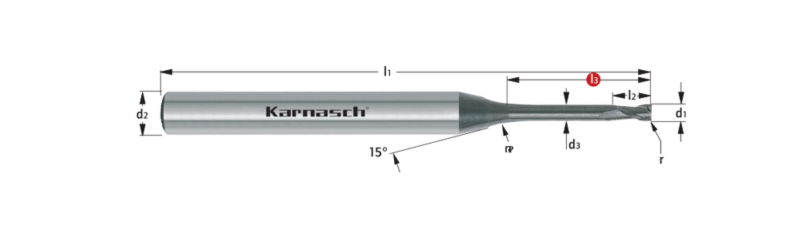

Твёрдосплавная концевая микрофреза с угловым радиусом, глубина обработки до 20хD
Варианты артикула
| Артикул | d1 | d2 | d3 | l1 | l2 | l3 | r2 | Z | Цена, ₽ | |
|---|---|---|---|---|---|---|---|---|---|---|
| 30.8011.0020.005.005 | 0.2 | 4 | 0.18 | 45 | 0.3 | 0.5 | 1 | 2 |
4 929
|
|
| 30.8011.0020.005.01 | 0.2 | 4 | 0.18 | 45 | 0.3 | 1 | 1 | 2 |
4 929
|
|
| 30.8011.0030.005.01 | 0.3 | 4 | 0.28 | 45 | 0.45 | 1 | 2 | 2 |
4 875
|
|
| 30.8011.0030.005.02 | 0.3 | 4 | 0.28 | 45 | 0.45 | 2 | 2 | 2 |
4 875
|
|
| 30.8011.0030.005.03 | 0.3 | 4 | 0.28 | 45 | 0.45 | 3 | 2 | 2 |
4 875
|
|
| 30.8011.0040.005.02 | 0.4 | 4 | 0.38 | 45 | 0.6 | 2 | 2 | 2 |
4 464
|
|
| 30.8011.0040.005.03 | 0.4 | 4 | 0.38 | 45 | 0.6 | 3 | 2 | 2 |
4 464
|
|
| 30.8011.0040.005.04 | 0.4 | 4 | 0.38 | 45 | 0.6 | 4 | 2 | 2 |
4 464
|
|
| 30.8011.0050.005.02 | 0.5 | 4 | 0.48 | 45 | 0.7 | 2 | 2 | 2 |
4 464
|
|
| 30.8011.0050.005.03 | 0.5 | 4 | 0.48 | 45 | 0.7 | 3 | 2 | 2 |
4 464
|
|
| 30.8011.0050.005.04 | 0.5 | 4 | 0.48 | 45 | 0.7 | 4 | 2 | 2 |
4 464
|
|
| 30.8011.0060.006.02 | 0.6 | 4 | 0.58 | 45 | 0.9 | 2 | 4 | 2 |
4 400
|
|
| 30.8011.0060.006.03 | 0.6 | 4 | 0.58 | 45 | 0.9 | 3 | 4 | 2 |
4 400
|
|
| 30.8011.0060.006.04 | 0.6 | 4 | 0.58 | 45 | 0.9 | 4 | 4 | 2 |
4 400
|
|
| 30.8011.0060.006.06 | 0.6 | 4 | 0.58 | 45 | 0.9 | 6 | 4 | 2 |
4 400
|
|
| 30.8011.0080.008.02 | 0.8 | 4 | 0.77 | 45 | 1.2 | 2 | 4 | 2 |
4 400
|
|
| 30.8011.0080.008.04 | 0.8 | 4 | 0.77 | 45 | 1.2 | 4 | 4 | 2 |
4 400
|
|
| 30.8011.0080.008.05 | 0.8 | 4 | 0.77 | 45 | 1.2 | 5 | 4 | 2 |
4 400
|
|
| 30.8011.0080.008.06 | 0.8 | 4 | 0.77 | 45 | 1.2 | 6 | 4 | 2 |
4 400
|
|
| 30.8011.0080.008.08 | 0.8 | 4 | 0.77 | 50 | 1.2 | 8 | 4 | 2 |
4 492
|
|
| 30.8011.0080.008.10 | 0.8 | 4 | 0.77 | 50 | 1.2 | 10 | 4 | 2 |
4 492
|
|
| 30.8011.0100.010.03 | 1 | 4 | 0.95 | 50 | 1.6 | 3 | 4 | 2 |
4 492
|
|
| 30.8011.0100.010.04 | 1 | 4 | 0.95 | 50 | 1.6 | 4 | 4 | 2 |
4 492
|
|
| 30.8011.0100.010.05 | 1 | 4 | 0.95 | 50 | 1.6 | 5 | 4 | 2 |
4 492
|
|
| 30.8011.0100.010.06 | 1 | 4 | 0.95 | 50 | 1.6 | 6 | 4 | 2 |
4 492
|
|
| 30.8011.0100.010.07 | 1 | 4 | 0.95 | 50 | 1.6 | 7 | 4 | 2 |
4 492
|
|
| 30.8011.0100.010.08 | 1 | 4 | 0.95 | 50 | 1.6 | 8 | 4 | 2 |
4 492
|
|
| 30.8011.0100.010.10 | 1 | 4 | 0.95 | 50 | 1.6 | 10 | 4 | 2 |
4 492
|
|
| 30.8011.0100.010.12 | 1 | 4 | 0.95 | 50 | 1.6 | 12 | 4 | 2 |
4 492
|
|
| 30.8011.0100.010.15 | 1 | 4 | 0.95 | 60 | 1.6 | 15 | 4 | 2 |
4 656
|
|
| 30.8011.0100.010.20 | 1 | 4 | 0.95 | 60 | 1.6 | 20 | 4 | 2 |
4 656
|
|
| 30.8011.0100.030.04 | 1 | 4 | 0.95 | 50 | 1.6 | 4 | 4 | 2 |
4 492
|
|
| 30.8011.0100.030.08 | 1 | 4 | 0.95 | 50 | 1.6 | 8 | 4 | 2 |
4 492
|
|
| 30.8011.0100.030.12 | 1 | 4 | 0.95 | 50 | 1.6 | 12 | 4 | 2 |
4 492
|
|
| 30.8011.0120.012.06 | 1.2 | 4 | 1.15 | 50 | 1.9 | 6 | 4 | 2 |
4 356
|
|
| 30.8011.0120.012.08 | 1.2 | 4 | 1.15 | 50 | 1.9 | 8 | 4 | 2 |
4 356
|
|
| 30.8011.0120.012.10 | 1.2 | 4 | 1.15 | 50 | 1.9 | 10 | 4 | 2 |
4 356
|
|
| 30.8011.0120.012.12 | 1.2 | 4 | 1.15 | 50 | 1.9 | 12 | 4 | 2 |
4 356
|
|
| 30.8011.0140.014.08 | 1.4 | 4 | 1.35 | 50 | 2.2 | 8 | 4 | 2 |
4 356
|
|
| 30.8011.0150.015.06 | 1.5 | 4 | 1.44 | 50 | 2.4 | 6 | 4 | 2 |
4 356
|
|
| 30.8011.0150.015.08 | 1.5 | 4 | 1.44 | 50 | 2.4 | 8 | 4 | 2 |
4 356
|
|
| 30.8011.0150.015.10 | 1.5 | 4 | 1.44 | 50 | 2.4 | 10 | 4 | 2 |
4 356
|
|
| 30.8011.0150.015.12 | 1.5 | 4 | 1.44 | 50 | 2.4 | 12 | 4 | 2 |
4 356
|
|
| 30.8011.0150.015.15 | 1.5 | 4 | 1.44 | 60 | 2.4 | 15 | 4 | 2 |
4 519
|
|
| 30.8011.0150.015.20 | 1.5 | 4 | 1.44 | 60 | 2.4 | 20 | 4 | 2 |
4 519
|
|
| 30.8011.0150.030.06 | 1.5 | 4 | 1.44 | 50 | 2.4 | 6 | 4 | 2 |
4 356
|
|
| 30.8011.0150.030.12 | 1.5 | 4 | 1.44 | 50 | 2.4 | 12 | 4 | 2 |
4 356
|
|
| 30.8011.0180.018.10 | 1.8 | 4 | 1.74 | 50 | 2.6 | 10 | 4 | 2 |
4 356
|
|
| 30.8011.0180.018.20 | 1.8 | 4 | 1.74 | 60 | 2.6 | 20 | 4 | 2 |
4 519
|
|
| 30.8011.0200.020.06 | 2 | 4 | 1.92 | 50 | 2.8 | 6 | 4 | 2 |
4 356
|
|
| 30.8011.0200.020.08 | 2 | 4 | 1.92 | 50 | 2.8 | 8 | 4 | 2 |
4 356
|
|
| 30.8011.0200.020.10 | 2 | 4 | 1.92 | 50 | 2.8 | 10 | 4 | 2 |
4 356
|
|
| 30.8011.0200.020.12 | 2 | 4 | 1.92 | 50 | 2.8 | 12 | 4 | 2 |
4 356
|
|
| 30.8011.0200.020.15 | 2 | 4 | 1.92 | 60 | 2.8 | 15 | 4 | 2 |
4 519
|
|
| 30.8011.0200.020.20 | 2 | 4 | 1.92 | 60 | 2.8 | 20 | 4 | 2 |
4 519
|
|
| 30.8011.0200.020.25 | 2 | 4 | 1.92 | 70 | 2.8 | 25 | 4 | 2 |
4 693
|
|
| 30.8011.0200.020.30 | 2 | 4 | 1.92 | 70 | 2.8 | 30 | 4 | 2 |
4 693
|
|
| 30.8011.0200.050.08 | 2 | 4 | 1.92 | 50 | 2.8 | 8 | 4 | 2 |
4 356
|
|
| 30.8011.0200.050.15 | 2 | 4 | 1.92 | 60 | 2.8 | 15 | 4 | 2 |
4 519
|
|
| 30.8011.0200.050.25 | 2 | 4 | 1.92 | 70 | 2.8 | 25 | 4 | 2 |
4 693
|
|
| 30.8011.0250.025.10 | 2.5 | 4 | 2.4 | 50 | 2.5 | 10 | 4 | 2 |
4 356
|
|
| 30.8011.0250.025.15 | 2.5 | 4 | 2.4 | 60 | 2.5 | 15 | 4 | 2 |
4 519
|
|
| 30.8011.0250.025.20 | 2.5 | 4 | 2.4 | 60 | 2.5 | 20 | 4 | 2 |
4 519
|
|
| 30.8011.0250.025.25 | 2.5 | 4 | 2.4 | 70 | 2.5 | 25 | 4 | 2 |
4 693
|
|
| 30.8011.0300.030.10 | 3 | 6 | 2.9 | 50 | 3 | 10 | 4 | 2 |
5 112
|
|
| 30.8011.0300.030.20 | 3 | 6 | 2.9 | 60 | 3 | 20 | 4 | 2 |
5 422
|
|
| 30.8011.0300.030.30 | 3 | 6 | 2.9 | 70 | 3 | 30 | 4 | 2 |
5 740
|
|
| 30.8011.0300.050.10 | 3 | 6 | 2.9 | 50 | 3 | 10 | 4 | 2 |
5 112
|
|
| 30.8011.0300.050.15 | 3 | 6 | 2.9 | 60 | 3 | 15 | 4 | 2 |
5 422
|
|
| 30.8011.0300.050.20 | 3 | 6 | 2.9 | 60 | 3 | 20 | 4 | 2 |
5 422
|
|
| 30.8011.0300.050.25 | 3 | 6 | 2.9 | 70 | 3 | 25 | 4 | 2 |
5 740
|
|
| 30.8011.0300.050.30 | 3 | 6 | 2.9 | 70 | 3 | 30 | 4 | 2 |
5 740
|
|
| 30.8011.0400.050.10 | 4 | 6 | 3.9 | 50 | 4 | 10 | 4 | 2 |
5 221
|
|
| 30.8011.0400.050.15 | 4 | 6 | 3.9 | 60 | 4 | 15 | 4 | 2 |
5 531
|
|
| 30.8011.0400.050.20 | 4 | 6 | 3.9 | 60 | 4 | 20 | 4 | 2 |
5 531
|
|
| 30.8011.0400.050.25 | 4 | 6 | 3.9 | 70 | 4 | 25 | 4 | 2 |
5 850
|
|
| 30.8011.0400.050.30 | 4 | 6 | 3.9 | 70 | 4 | 30 | 4 | 2 |
5 850
|
|
| 30.8011.0500.050.15 | 5 | 6 | 4.9 | 60 | 5 | 15 | 4 | 2 |
5 531
|
|
| 30.8011.0500.050.20 | 5 | 6 | 4.9 | 60 | 5 | 20 | 4 | 2 |
5 531
|
|
| 30.8011.0500.050.30 | 5 | 6 | 4.9 | 70 | 5 | 30 | 4 | 2 |
5 850
|
|
| 30.8011.0500.050.40 | 5 | 6 | 4.9 | 80 | 5 | 40 | 4 | 2 |
6 160
|
|
| 30.8011.0600.050.10 | 6 | 6 | 5.9 | 50 | 6 | 10 | 4 | 2 |
5 221
|
|
| 30.8011.0600.050.15 | 6 | 6 | 5.9 | 60 | 6 | 15 | 4 | 2 |
5 531
|
|
| 30.8011.0600.050.20 | 6 | 6 | 5.9 | 60 | 6 | 20 | 4 | 2 |
5 531
|
|
| 30.8011.0600.050.30 | 6 | 6 | 5.9 | 70 | 6 | 30 | 4 | 2 |
5 850
|
|
| 30.8011.0600.050.40 | 6 | 6 | 5.9 | 80 | 6 | 40 | 4 | 2 |
6 160
|
|
