MKD/Mono-crystalline diamond radius miling cutter for high-gloss mirror finish

Арт. 29.6811
MKD/Mono-crystalline diamond radius miling cutter for high-gloss mirror finish
Product details:

Because of diamond price fluctuation, we ask you to request the current prices before ordering.

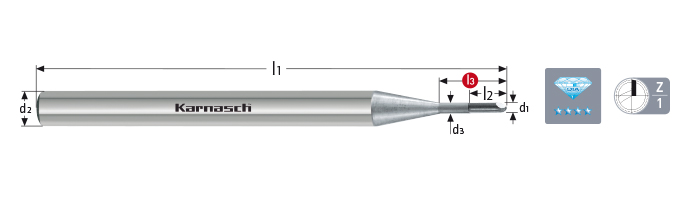

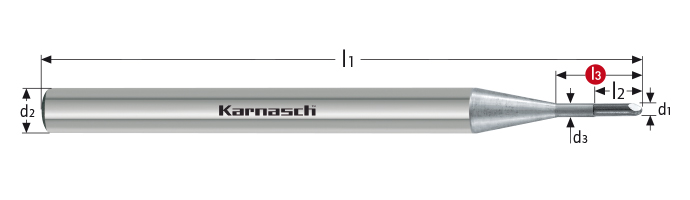

Art Nr. d1 r l3 d2 h5 d3 l1 l2 z
296811010004 1,0 0,5 4 4 0,95 40 3 1 1.632,68
296811015004 1,5 0,75 4 4 1,40 40 3 1 1.163,82
296811020004 2,0 1,0 4 4 1,80 40 3 1 1.180,48
296811030004 3,0 1,5 4 4 2,70 50 3 1 1.230,46
296811040005 4,0 2,0 5 6 3,60 50 3 1 1.373,26
296811060005 6,0 3,0 5 6 5,50 50 4 1 1.482,74
Артикул l2l1d3d2 h5zd1l3r
29.6811-0100-043400,95411,040,5
29.6811-0150-043401,40411,540,75
29.6811-0200-043401,80412,041,0
29.6811-0300-043502,70413,041,5
29.6811-0400-053503,60614,052,0
29.6811-0600-054505,50616,053,0
