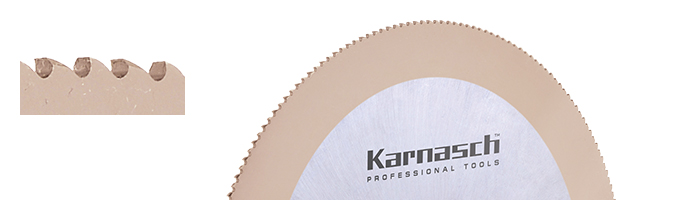

Пильные диски HSS с покрытием KX, для резки стали и цветных металлов

Арт. 5.1040
Пильные диски HSS с покрытием KX, для резки стали и цветных металлов, арт. 5.1040
Применение

Для стали/нержавеющей стали до 800 Н/мм2, а также алюминия, меди и латуни.

Изготовлены из быстрорежущей стали HSS-DM05, содержащей ванадий, вольфрам и молибден, благодаря чему инструмент обладает отличными механическими характеристиками и высокой прочностью с твердостью 64 ± 1 HRC.

Покрытие KX увеличивает срок службы инструмента, в сравнении с дисками, обработанными паром.

  • Благодаря хорошей устойчивости к воздействию высоких температур, диски также подходят для работ с недостаточным охлаждением и минимальной смазкой.
  • При низком коэффициенте трения (0,45) и высокой поверхностной твердости 3500 HV возможны более высокие скорости резания, что делает диски идеальными для применения в автоматических станках.
Артикул

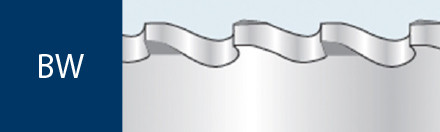

5.1040.210.020 210 2,0 32 210 BW 2-8-45+2-9-50+2-11-63
5.1040.210.025 210 2,0 32 160 BW 2-8-45+2-9-50+2-11-63

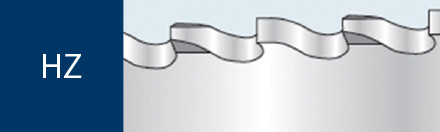

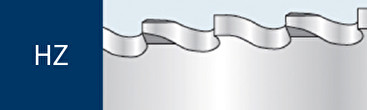

5.1040.210.027 210 2,0 32 120 HZ 2-8-45+2-9-50+2-11-63
5.1040.210.040 210 2,0 40 160 BW 2-8-55 + 4-11-63
5.1040.225.140 225 2,0 32 220 BW 2 NL REMS/Roller
5.1040.225.150 225 2,0 32 180 BW 2 NL REMS/Roller
5.1040.225.160 225 2,0 32 120 HZ 2 NL REMS/Roller
5.1040.225.180 225 2,0 32 220 BW 2-8-45+2-9-50+2-11-63
5.1040.225.190 225 2,0 32 180 BW 2-8-45+2-9-50+2-11-63
5.1040.225.200 225 2,0 32 160 HZ 2-8-45+2-9-50+2-11-63
5.1040.225.210 225 2,0 32 120 HZ 2-8-45+2-9-50+2-11-63
5.1040.225.220 225 2,0 32 90 BW 2-8-45+2-9-50+2-11-63
5.1040.250.160 250 2,0 32 240 BW 2-8-45+2-9-50+2-11-63
5.1040.250.170 250 2,0 32 200 BW 2-8-45+2-9-50+2-11-63
5.1040.250.180 250 2,0 32 180 BW 2-8-45+2-9-50+2-11-63
5.1040.250.190 250 2,0 32 160 BW 2-8-45+2-9-50+2-11-63
5.1040.250.210 250 2,0 32 128 HZ 2-8-45+2-9-50+2-11-63
5.1040.250.220 250 2,0 32 100 HZ 2-8-45+2-9-50+2-11-63
5.1040.250.290 250 2,0 40 240 BW 2-8-55 + 4-12-64
5.1040.250.300 250 2,0 40 200 BW 2-8-55 + 4-12-64
5.1040.250.310 250 2,0 40 180 BW 2-8-55 + 4-12-64
5.1040.250.320 250 2,0 40 160 BW 2-8-55 + 4-12-64
5.1040.250.330 250 2,0 40 128 HZ 2-8-55 + 4-12-64
5.1040.250.340 250 2,0 40 100 HZ 2-8-55 + 4-12-64
5.1040.250.360 250 2,5 32 240 BW 2-8-45+2-9-50+2-11-63
5.1040.250.370 250 2,5 32 200 BW 2-8-45+2-9-50+2-11-63
5.1040.250.380 250 2,5 32 160 BW 2-8-45+2-9-50+2-11-63
5.1040.250.390 250 2,5 32 128 HZ 2-8-45+2-9-50+2-11-63
5.1040.250.400 250 2,5 32 100 HZ 2-8-45+2-9-50+2-11-63
5.1040.250.450 250 2,5 40 240 BW 2-8-55 + 4-12-64
5.1040.250.460 250 2,5 40 200 BW 2-8-55 + 4-12-64
5.1040.250.470 250 2,5 40 160 BW 2-8-55 + 4-12-64
5.1040.250.480 250 2,5 40 128 HZ 2-8-55 + 4-12-64
5.1040.250.490 250 2,5 40 100 HZ 2-8-55 + 4-12-64
5.1040.275.060 275 2,0 32 280 BW 2-8-45+2-9-50+2-11-63
5.1040.275.070 275 2,0 32 220 BW 2-8-45+2-9-50+2-11-63
5.1040.275.080 275 2,0 32 200 BW 2-8-45+2-9-50+2-11-63
5.1040.275.090 275 2,0 32 180 BW 2-8-45+2-9-50+2-11-63
5.1040.275.100 275 2,0 32 160 BW 2-8-45+2-9-50+2-11-63
5.1040.275.110 275 2,0 32 140 HZ 2-8-45+2-9-50+2-11-63
5.1040.275.120 275 2,0 32 110 HZ 2-8-45+2-9-50+2-11-63
5.1040.275.240 275 2,0 40 280 BW 2-8-55 + 4-12-64
5.1040.275.250 275 2,0 40 220 BW 2-8-55 + 4-12-64
5.1040.275.260 275 2,0 40 200 BW 2-8-55 + 4-12-64
5.1040.275.270 275 2,0 40 180 BW 2-8-55 + 4-12-64
5.1040.275.280 275 2,0 40 160 BW 2-8-55 + 4-12-64
5.1040.275.290 275 2,0 40 140 HZ 2-8-55 + 4-12-64
5.1040.275.310 275 2,5 32 280 BW 2-8-45+2-9-50+2-11-63
5.1040.275.320 275 2,5 32 220 BW 2-8-45+2-9-50+2-11-63
5.1040.275.330 275 2,5 32 180 BW 2-8-45+2-9-50+2-11-63
5.1040.275.340 275 2,5 32 160 BW 2-8-45+2-9-50+2-11-63
5.1040.275.350 275 2,5 32 140 HZ 2-8-45+2-9-50+2-11-63
5.1040.275.355 275 2,5 32 120 HZ 2-8-45+2-9-50+2-11-63
5.1040.275.360 275 2,5 32 110 HZ 2-8-45+2-9-50+2-11-63
5.1040.275.480 275 2,5 40 280 BW 2-8-55 + 4-12-64
5.1040.275.490 275 2,5 40 220 BW 2-8-55 + 4-12-64
5.1040.275.500 275 2,5 40 180 BW 2-8-55 + 4-12-64
5.1040.275.510 275 2,5 40 160 BW 2-8-55 + 4-12-64
5.1040.275.520 275 2,5 40 140 HZ 2-8-55 + 4-12-64
5.1040.275.530 275 2,5 40 120 HZ 2-8-55 + 4-12-64
5.1040.300.100 300 2,5 32 220 BW 2-8-45+2-9-50+2-11-63
5.1040.300.110 300 2,5 32 200 BW 2-8-45+2-9-50+2-11-63
5.1040.300.120 300 2,5 32 180 BW 2-8-45+2-9-50+2-11-63
5.1040.300.130 300 2,5 32 160 HZ 2-8-45+2-9-50+2-11-63
5.1040.300.140 300 2,5 32 120 HZ 2-8-45+2-9-50+2-11-63
5.1040.300.220 300 2,5 40 220 BW 2-8-55 + 4-12-64
5.1040.300.230 300 2,5 40 200 BW 2-8-55 + 4-12-64
5.1040.300.240 300 2,5 40 180 BW 2-8-55 + 4-12-64
5.1040.300.250 300 2,5 40 160 HZ 2-8-55 + 4-12-64
5.1040.300.260 300 2,5 40 120 HZ 2-8-55 + 4-12-64
5.1040.315.240 315 2,5 32 240 BW 2-8-45+2-9-50+2-11-63
5.1040.315.250 315 2,5 32 220 BW 2-8-45+2-9-50+2-11-63
5.1040.315.260 315 2,5 32 200 BW 2-8-45+2-9-50+2-11-63
5.1040.315.270 315 2,5 32 180 BW 2-8-45+2-9-50+2-11-63
5.1040.315.280 315 2,5 32 160 HZ 2-8-45+2-9-50+2-11-63
5.1040.315.290 315 2,5 32 120 HZ 2-8-45+2-9-50+2-11-63
5.1040.315.295 315 2,5 32 100 HZ 2-8-45+2-9-50+2-11-63
5.1040.315.310 315 2,5 40 240 BW 2-8-55 + 4-12-64
5.1040.315.320 315 2,5 40 220 BW 2-8-55 + 4-12-64
5.1040.315.330 315 2,5 40 200 BW 2-8-55 + 4-12-64
5.1040.315.340 315 2,5 40 180 BW 2-8-55 + 4-12-64
5.1040.315.350 315 2,5 40 160 HZ 2-8-55 + 4-12-64
5.1040.315.360 315 2,5 40 120 HZ 2-8-55 + 4-12-64
5.1040.315.370 315 2,5 40 100 HZ 2-8-55 + 4-12-64
5.1040.315.430 315 3,0 32 240 BW 2-8-45+2-9-50+2-11-63
5.1040.315.440 315 3,0 32 200 BW 2-8-45+2-9-50+2-11-63
5.1040.315.450 315 3,0 32 160 HZ 2-8-45+2-9-50+2-11-63
5.1040.315.457 315 3,0 32 100 HZ 2-8-45+2-9-50+2-11-63
5.1040.315.470 315 3,0 40 240 BW 2-8-55 + 4-12-64
5.1040.315.480 315 3,0 40 200 BW 2-8-55 + 4-12-64
5.1040.315.490 315 3,0 40 160 HZ 2-8-55 + 4-12-64
5.1040.315.510 315 3,0 40 100 HZ 2-8-55 + 4-12-64
5.1040.350.020 350 2,0 32 350 BW 2-8-45+2-9-50+2-11-63
5.1040.350.030 350 2,0 32 280 BW 2-8-45+2-9-50+2-11-63
5.1040.350.040 350 2,0 32 240 BW 2-8-45+2-9-50+2-11-63
5.1040.350.050 350 2,0 32 220 BW 2-8-45+2-9-50+2-11-63
5.1040.350.070 350 2,5 32 350 BW 2-8-45+2-9-50+2-11-63
5.1040.350.080 350 2,5 32 280 BW 2-8-45+2-9-50+2-11-63
5.1040.350.090 350 2,5 32 240 BW 2-8-45+2-9-50+2-11-63
5.1040.350.100 350 2,5 32 220 BW 2-8-45+2-9-50+2-11-63
5.1040.350.110 350 2,5 32 180 HZ 2-8-45+2-9-50+2-11-63
5.1040.350.120 350 2,5 32 160 HZ 2-8-45+2-9-50+2-11-63
5.1040.350.130 350 2,5 32 140 HZ 2-8-45+2-9-50+2-11-63
5.1040.350.140 350 2,5 32 120 HZ 2-8-45+2-9-50+2-11-63
5.1040.350.160 350 2,5 40 350 BW 2-8-55+4-12-64
5.1040.350.170 350 2,5 40 280 BW 2-8-55+4-12-64
5.1040.350.180 350 2,5 40 240 BW 2-8-55+4-12-64
5.1040.350.190 350 2,5 40 220 BW 2-8-55+4-12-64
5.1040.350.200 350 2,5 40 180 HZ 2-8-55+4-12-64
5.1040.350.205 350 2,5 40 160 HZ 2-8-55+4-12-64
5.1040.350.220 350 2,5 50 220 BW 4-15-80 + 4-14-85
5.1040.350.240 350 2,5 50 120 HZ 4-15-80 + 4-14-85
5.1040.350.250 350 2,5 50 100 HZ 4-15-80 + 4-14-85
5.1040.350.270 350 3,0 32 280 BW 2-8-45+2-9-50+2-11-63
5.1040.350.280 350 3,0 32 240 BW 2-8-45+2-9-50+2-11-63
5.1040.350.290 350 3,0 32 220 BW 2-8-45+2-9-50+2-11-63
5.1040.350.300 350 3,0 32 200 BW 2-8-45+2-9-50+2-11-63
5.1040.350.310 350 3,0 32 180 HZ 2-8-45+2-9-50+2-11-63
5.1040.350.320 350 3,0 32 160 HZ 2-8-45+2-9-50+2-11-63
5.1040.350.330 350 3,0 32 140 HZ 2-8-45+2-9-50+2-11-63
5.1040.350.340 350 3,0 32 120 HZ 2-8-45+2-9-50+2-11-63
5.1040.350.360 350 3,0 40 280 BW 2-8-55+4-12-64
5.1040.350.370 350 3,0 40 240 BW 2-8-55+4-12-64
5.1040.350.380 350 3,0 40 220 BW 2-8-55+4-12-64
5.1040.350.390 350 3,0 40 200 BW 2-8-55+4-12-64
5.1040.350.400 350 3,0 40 180 HZ 2-8-55+4-12-64
5.1040.350.410 350 3,0 40 160 HZ 2-8-55+4-12-64
5.1040.350.420 350 3,0 40 140 HZ 2-8-55+4-12-64
5.1040.350.430 350 3,0 40 120 HZ 2-8-55+4-12-64
5.1040.350.440 350 3,0 40 110 HZ 2-8-55+4-12-64
5.1040.350.450 350 3,0 40 90 HZ 2-8-55+4-12-64
5.1040.350.470 350 3,0 50 220 BW 4-15-80 + 4-14-85
5.1040.350.490 350 3,0 50 160 HZ 4-15-80 + 4-14-85
5.1040.350.510 350 3,0 50 120 HZ 4-15-80 + 4-14-85
5.1040.350.520 350 3,0 50 100 HZ 4-15-80 + 4-14-85
5.1040.370.180 370 3,0 50 220 BW 4-15-80 + 4-14-85
5.1040.370.190 370 3,0 50 160 HZ 4-15-80 + 4-14-85
5.1040.370.200 370 3,0 50 120 HZ 4-15-80 + 4-14-85
5.1040.370.210 370 3,0 50 100 HZ 4-15-80 + 4-14-85
